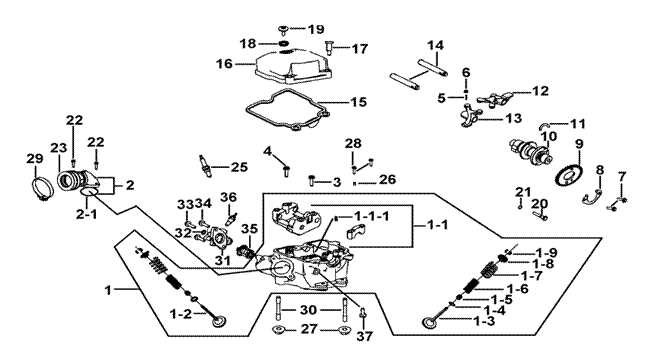

102 HEAD ASSY, CYLINDER   FBE-U




















ITEM NO. PART NO. DESCRIPTION Q'TY AMEND NOTE
01 924601 HEAD ASSY., CYLINDER 1
01-1 924602A HEAD COMP., CYLINDER 1
01-1-1 924336 SCREW 1
01-2 924020 VALVE, INTAKE 2
01-3 924021 VALVE, EXHAUST 2
01-4 924023 LOWER CUP 4
01-5 924024 SEAL, VALVE STEM 4
01-6 924025 SPRING, VALVE, INNER 4
01-7 924026 SPRING, VALVE, OUTER 4
01-8 924027 UPPER CUP 4
01-9 400093 COTTER, VALVE 8
02 924676 PIPE ASSY, INTAKE 1
02-1 924076 O-RING Φ2x41.5 1
03 S20615 BOLT, FLANGE M6X45 2
04 S20614 BOLT, FLANGE M6X60 2
05 S06501 BOLT,ADJUSTING 4
06 N03501 NUT, HEX. 4
07 S99605 BOLT M6X12 2
08 924031 FIXING PLATE 1
09 924036 TIMING SPROCKET 34T GB-69 1
10 924305 CAM SHAFT SET 1
11 924032 C RING 1
12 924033 ARM, VALVE ROCKER, EX 1
13 924034 ARM, VALVE ROCKER, IN 1
14 924035 PIN, ROCKER ARM AXLE 2
15 924016 GASKET, CYLINDER HEAD 1
16 924017 HEAD, CYLINDER 1
17 924019 BOLT M7X31 2
18 924297 GASKET 1
19 924018 BOLT M7X23.5 1
20 S96806 BOLT, CAM CHAIN TENSIONER 1
21 W99818 GASKET 1
22 S24605 BOLT,FLANGE 2
23 924604 RUBBER TUBE 1
24 S95808 STUD 10.5 2
25 924090 SPARK PLUG (NGK CR7E) 1
26 P40803 PIN, DOWEL 4
27 N10801 NUT, FLANGE 8mm 2
28 S20616 BOLT, FLANGE 2
29 R66602 CLAMP 2
30 S95807 STUD 2
31 924088 THERMOSTAT COVER 1
32 924295 WASHER 1
33 S96605 BOLT, FLANGE 1
34 S24616 BOLT, FLANGE 2
35 924294 THERMOSTAT 1
36 924089 THERMISTOR M6X20 1
37 S77601 BOLT, FLANGE 1
