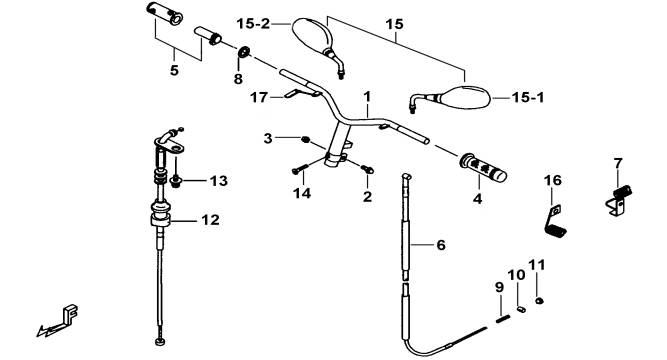

| 30 | HANDLE BAR | BH1 | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | BH1309903 | HANDLE BAR ASSY. | 1 | ||||
| 02 | GA557SC01 | BOLT, FLANGE M10X43 | 1 | ||||
| 03 | GA551NT01 | NUT, SELFLOCK M10X1.0 | 1 | ||||
| 04 | GF530RB02 | GRIP, LH. | 1 | ||||
| 05 | 413032 | GRIP ASSY., RH. | 1 | ||||
| 06 | 413055 | CABLE, REAR BRAKE | 1 | ||||
| 07 | 401702 | BRKT, SET REAR BRAKE (REAR) | 1 | ||||
| 08 | 413912 | SEAL | 1 | ||||
| 09 | GF530SP01 | SPRING 7X110X1.0 | 1 | ||||
| 10 | GI530PN01 | PIN, STOP∮12X22 | 1 | ||||
| 11 | GI530NT01 | NUT, ADJUSTING M6X16 | 1 | ||||
| 12 | BH1309906 | CABLE, THROTTLE | 1 | ←621749 | |||
| 12A | 413067 | CABLE, THROTTLE(VM 13) | 1 | 621750→ | |||
| 13 | GA557SC12 | SCREW, PAN HEAD M5X10 | 1 | ||||
| 14 | GA557SC02 | SCREW, FLAT HEAD M8X35 | 1 | ||||
| 15 | GE5300001 | MIRROR, REAR VIEW ASSY. | 1 | ||||
| 15-1 | GE5309905 | MIRROR, REAR VIEW, LH. | 1 | ||||
| 15-2 | GE5309904 | MIRROR, REAR VIEW, RH. | 1 | ||||
| 16 | GI5309907 | BRKT, SET REAR BRAKE CABKE(MIDDLE) | 1 | ||||
| 17 | GA501SR01 | CLAMP | 1 | ||||
