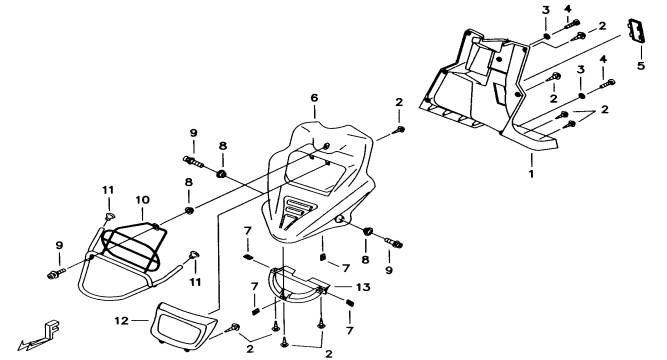

| 25 | FRONT LEG SHIELD | BH1 | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | BH125PL02 | COVER, LEG SHIELD | 1 | ←614424 | |||
| 01A | BH125PL02A | COVER, LEG SHIELD | 1 | 614425→ | |||
| 02 | S57501 | SCREW,OVAL HEAD, FLANGE M5X14 | 15 | ||||
| 03 | W99602 | WASHER 6.5X12X1.0 | 3 | ||||
| 04 | GA904SC26 | SCREW, SOCKET HEAD M6X16 | 3 | ||||
| 05 | BH125PL04 | COVER SET, LEG SHIELD, SMALL | 1 | ||||
| 06 | BH125PL01 | LEG SHIELD FRONT | 1 | ||||
| 07 | N31501 | NUT, SPRING M5 | 5 | ||||
| 08 | BH125AL01 | CAP, RUBBER | 3 | ||||
| 09 | S72602 | BOLT, HEX. HEAD | 3 | ||||
| 10 | BH125FE01 | BUMPER, PROTECTOR | 1 | ||||
| 11 | GI525RB03 | CAP, RUBBER | 2 | ||||
| 12 | 450050 | COVER, LAMP | 1 | ||||
| 13 | BH125PL03 | FRONT FENDER, INNER | 1 | ||||
