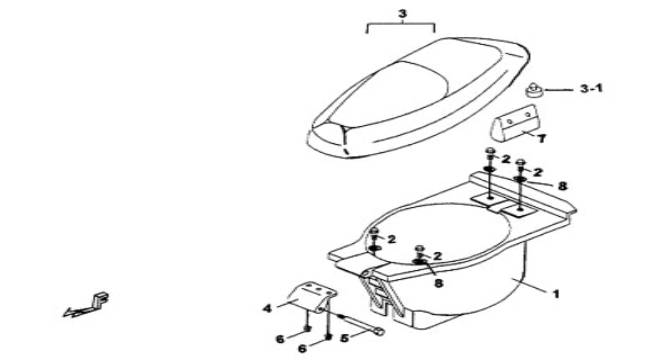

| 23 | SEAT | BH1 | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 452015 | HELMET CASE | 1 | ||||
| 02 | GA551SC09 | BOLT, FLANGE M6X20 | 4 | ||||
| 03 | 452029 | SEAT SET | 1 | ||||
| 03-1 | 401904 | DAMPER, RUBBER | 2 | ||||
| 04 | BH123FE01 | BRKT, SEAT | 1 | ||||
| 05 | S47601 | SCREW, RECESSED PAN HEAD M6X68 | 1 | ||||
| 06 | GA554NT04 | NUT, FLANGE M6xP1.0 | 2 | ||||
| 07 | GA5049915 | PACKAGE, TOOL | 1 | ||||
| 08 | GA556WS02 | WASHER | 4 | ||||
