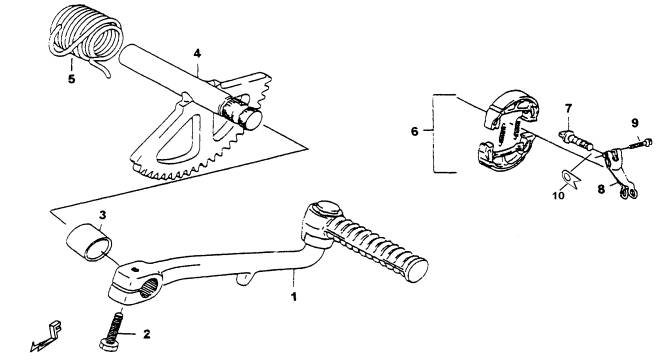

| 11 | KICK STARTER | BH1 | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | GA9059911 | LEVER ASSY., KICK STARTER | 1 | ||||
| 02 | GA905SC01 | BOLT, HEX. HEAD M8X22 | 1 | ||||
| 03 | GA505BS05 | BUSH, KICK STARTER SHAFT | 1 | ||||
| 04 | GA5059910 | SHAFT COMP., STARTER | 1 | ||||
| 05 | GA505SP01 | SPRING, KICK STARTER SHAFT | 1 | ||||
| 06 | GA5580012 | SHOE SET, REAR BRAKE | 1 | ||||
| 07 | GI534FE01 | CAM, REAR BRAKE | 1 | ||||
| 08 | GI534FE02 | LEVER, REAR BRAKE | 1 | ||||
| 09 | GA558SC05 | BOLT, HEX. HEAD M6x28 | 1 | ||||
| 10 | 422049 | INDICATOR BRAKE | 1 | ||||
