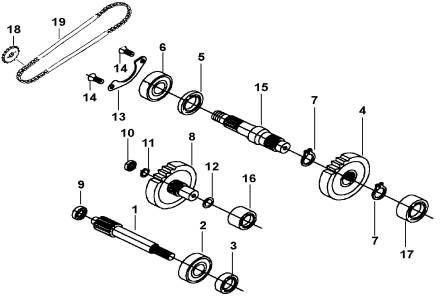

| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
|
|
|
|
|
|
|
| 01 |
GA907FE01 |
SHAFT, DRIVE 13T |
1 |
←007741 |
|
|
| 01A |
427534 |
SHAFT, DRIVE 13T |
1 |
007742→ |
|
|
| 02 |
GA507BR04 |
BEARING, DRIVE SHAFT,
LH. 17x47x14 |
1 |
|
|
|
| 03 |
GA507OS01 |
OIL SEAL, DRIVE SHAFT
17x27x5 |
1 |
|
|
|
| 04 |
GA907FE03 |
GEAR, FINAL DRIVEN
35T |
1 |
←007741 |
|
|
| 04A |
427535 |
GEAR, FINAL DRIVEN
35T |
1 |
007742→ |
|
|
| 05 |
GA507OS02 |
OIL SEAL, REAL AXLE
27x40x6 |
1 |
|
|
|
| 06 |
GA507BR06 |
BEARING, GEAR AXLE,
RH. 20x47x14 |
1 |
|
|
|
| 07 |
GA507SR02 |
CIRCLIP, FINAL DRIVEN
GEAR ∮ 22 |
2 |
|
|
|
| 08 |
GA9079901 |
SHAFT COMP., IDLE
10X33T |
1 |
←007741 |
|
|
| 08A |
427536 |
SHAFT COMP., IDLE
10X33T |
1 |
007742→ |
|
|
| 09 |
GA507BR03 |
BEARING, DRIVE SHAFT,
RH. 12X32X10 |
1 |
|
|
|
| 10 |
GA507BR02 |
BEARING, IDLER, RH.
12x32x10 |
1 |
|
|
|
| 11 |
GA507WS01 |
WASHER, IDLE SHAFT,
RH. 12x20x1 |
1 |
|
|
|
| 12 |
GA507WS02 |
WASHER, IDLE SHAFT,
LH. |
1 |
|
|
|
| 13 |
GA507FE04 |
RETAINER, REAR AXLE
BEARING |
1 |
|
|
|
| 14 |
GA507SC01 |
SCREW, BEARING
RETAINER M6x16 |
2 |
|
|
|
| 15 |
GA907FE02 |
SHAFT, REAR AXLE |
1 |
|
|
|
| 16 |
GA507BR01 |
BEARING, IDLER
LH. |
1 |
|
|
|
| 17 |
GA507BR05 |
BEARING, REAR AXLE,
LH. |
1 |
|
|
|
| 18 |
520011 |
DRIVE SPROCKET
14T |
1 |
←007741 |
|
|
| 18A |
520251 |
DRIVE SPROCKET
18T |
1 |
007742→ |
|
|
| 19 |
520002 |
DRIVE CHAIN
ASSEMBLY |
1 |
←007741 |
|
|
| 19A |
520253 |
DRIVE CHAIN
ASSEMBLY |
1 |
007742→ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
