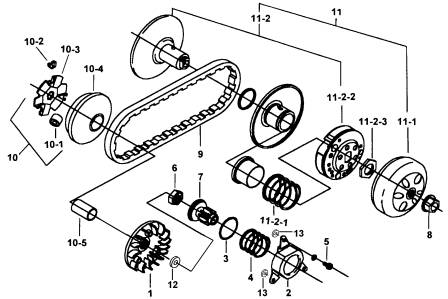

| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
|
|
|
|
|
|
|
| 01 |
GA906AL01 |
FACE, FIXED
DRIVE |
1 |
|
|
|
| 02 |
GA906FE01 |
HOLDER, KICK DRN GEAR
SPRING |
1 |
|
|
|
| 03 |
GA506WS02 |
WASHER |
1 |
|
|
|
| 04 |
GA506SP01 |
SPRING 30.5X24.9 |
1 |
|
|
|
| 05 |
S79605 |
SCREW, SOCKET
HEAD |
3 |
|
|
|
| 06 |
GA906FE04 |
STARTER, KICK
RH. |
1 |
|
|
|
| 07 |
GA5069904 |
STARTER SET, KICK
LH. |
1 |
|
|
|
| 08 |
GA501NT01 |
NUT, FLANGE M10 |
1 |
|
|
|
| 09 |
GA906RB01 |
V-BELT, DRIVE |
1 |
|
|
|
| 10 |
490574 |
PULLEY COMP.,
DRIVE |
1 |
←007741 |
|
|
| 10-1 |
490573 |
ROLLER COMP., MOVABLE
DRIVE FACE |
6 |
←007741 |
|
|
| 10-1A |
491713 |
ROLLER COMP., MOVABLE
DRIVE FACE |
6 |
007742→ |
|
|
| 10-2 |
PG289931 |
GUIDE, MOVABLE DRIVE
FACE PLATE |
3 |
|
|
|
| 10-3 |
490044 |
PLATE, FIXED
DRIVE |
1 |
|
|
|
| 10-4 |
490041 |
FACE COMP., DRIVE
MOVABLE |
1 |
|
|
|
| 10-5 |
A02806FE01 |
SPACER |
1 |
←007741 |
|
|
| 10-5A |
491714 |
SPACER |
1 |
007742→ |
|
|
| 10A |
491711 |
PULLEY ASSY.,
DRIVE |
1 |
007742→ |
|
|
| 11 |
GA5069928 |
PULLEY COMP.,
DRIVEN |
1 |
|
|
|
| 11-1 |
GA5069917 |
HOUSING COMP.,
CLUTCH |
1 |
|
|
|
| 11-2 |
GA9069916 |
PULLEY ASSY.,
DRIVEN |
1 |
|
|
|
| 11-2-1 |
A04906SP02 |
SPRING, MOVABLE DRIVEN
FACE |
1 |
|
|
|
| 11-2-2 |
A028069903 |
CLUTCH ASSY.,
SHOE |
1 |
|
|
|
| 11-2-3 |
A02806NT01 |
NUT, HEX. M28 |
1 |
|
|
|
| 12 |
W99409 |
WASHER
∮14.5X∮26X2t |
1 |
007742→ |
|
|
| 13 |
W99604 |
WASHER |
3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
