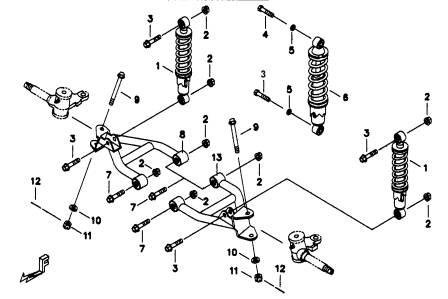

| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
|
|
|
|
|
|
|
| 01 |
513300 |
SHOCK ABSORBER ASSY., FRONT |
2 |
|
|
|
| 02 |
GA551NT01 |
NUT, SELFLOCK M10X1.0 |
8 |
|
|
|
| 03 |
GA557SC01 |
BOLT, FLANGE M10X43 |
5 |
|
|
|
| 04 |
GA556SC03 |
BOLT, HEX. HEAD M10X1.25X40L |
1 |
|
|
|
| 05 |
GA556WS06 |
WASHER, SPRING 10.2X3.7X2.5t |
2 |
|
|
|
| 06 |
513301 |
SHOCK ABSORBER ASSY., REAR |
1 |
|
|
|
| 07 |
S20009 |
BOLT, HEX. HEAD M10X1.25X48L |
4 |
|
|
|
| 08 |
513302SG |
SUSPENSION ARM, RH.(SILVER) |
1 |
|
|
|
| 09 |
S20010 |
BOLT, HEX. HEAD M10X1.25X100L |
2 |
|
|
|
| 10 |
W99010 |
WASHER ∮10.5X∮22X3.5t |
2 |
|
|
|
| 11 |
N13001 |
NUT M10X1.25 |
2 |
|
|
|
| 12 |
GA551PN04 |
PIN, COTTER |
2 |
|
|
|
| 13 |
513303SG |
SUSPENSION ARM, LH.(SILVER) |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
