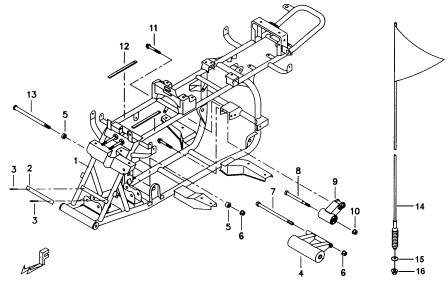

| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
|
|
|
|
|
|
|
| 01 |
511900SG |
FRAME (SILVER) |
1 |
|
|
|
| 02 |
511901SG |
FRAME NUMBER PLATE (SILVER) |
1 |
←129680 |
|
|
| 03 |
GA551FE10 |
RIVET |
1 |
←129680 |
|
|
| 04 |
511906 |
BRKT ASSY., CRANKCASE SET |
1 |
|
|
|
| 05 |
511911 |
SPACER |
2 |
|
|
|
| 06 |
GA551NT01 |
NUT, SELFLOCK M10X1.0 |
1 |
|
|
|
| 07 |
GA504SC14 |
BOLT, HEX. HEAD M10X1.25X185L |
1 |
|
|
|
| 08 |
S96805 |
BOLT M8X1.25X120L |
1 |
|
|
|
| 09 |
511907 |
ROCKER ARM ASSY., REAR |
1 |
|
|
|
| 10 |
GA558NT02 |
NUT, SELFLOCK 8X7.5 |
2 |
|
|
|
| 11 |
S20810 |
BOLT, FLANGE 8X38 |
2 |
|
|
|
| 12 |
512101 |
RUBBER MAT |
2 |
|
|
|
| 13 |
S06002 |
BOLT M10X1.25X185L |
1 |
|
|
|
| 14 |
513920 |
FLAGPOLE SET |
1 |
|
|
|
| 15 |
W10202 |
WASHER |
1 |
|
|
|
| 16 |
N12201 |
NUT |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
