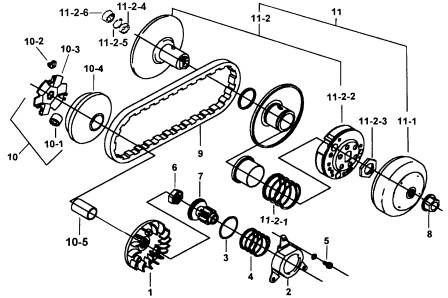

| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
|
|
|
|
|
|
|
| 01 |
GA906AL01 |
FACE, FIXED DRIVE |
1 |
|
|
|
| 02 |
GA906FE01 |
HOLDER, KICK DRN GEAR SPRING |
1 |
|
|
|
| 03 |
GA506WS02 |
WASHER |
1 |
|
|
|
| 04 |
GA506SP01 |
SPRING 30.5X24.9 |
1 |
|
|
|
| 05 |
S79605 |
SCREW, SOCKET HEAD |
3 |
|
|
|
| 06 |
GA906FE04 |
STARTER, KICK RH. |
1 |
|
|
|
| 07 |
GA5069904 |
STARTER SET, KICK LH. |
1 |
|
|
|
| 08 |
GA501NT01 |
NUT, FLANGE M10 |
1 |
|
|
|
| 09 |
GA906RB01 |
V-BELT, DRIVE |
1 |
|
|
|
| 10 |
490574 |
PULLEY COMP., DRIVE |
1 |
|
|
|
| 10-1 |
490573 |
ROLLER COMP., MOVABLE DRIVE FACE |
6 |
|
|
|
| 10-2 |
PG289931 |
GUIDE, MOVABLE DRIVE FACE PLATE |
3 |
|
|
|
| 10-3 |
490044 |
PLATE, FIXED DRIVE |
1 |
|
|
|
| 10-4 |
490041 |
FACE COMP., DRIVE MOVABLE |
1 |
|
|
|
| 10-5 |
A02806FE01 |
SPACER |
1 |
|
|
|
| 11 |
491404 |
PULLEY COMP., DRIVEN |
1 |
|
|
|
| 11-1 |
PG289933 |
HOUSING COMP., CLUTCH |
1 |
|
|
|
| 11-2 |
490051 |
PULLEY ASSY., DRIVEN |
1 |
|
|
|
| 11-2-1 |
PT506SP02 |
SPRING, MOVABLE DRIVEN FACE |
1 |
|
|
|
| 11-2-2 |
491405 |
CLUTCH ASSY., SHOE |
1 |
|
|
|
| 11-2-3 |
RT406NT03 |
NUT, HEX. M28 |
1 |
|
|
|
| 11-2-4 |
490385 |
BEARING |
1 |
|
|
|
| 11-2-5 |
A02806SR01 |
CIR-CLIP |
1 |
|
|
|
| 11-2-6 |
490384 |
NEEDLE BEARING |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
