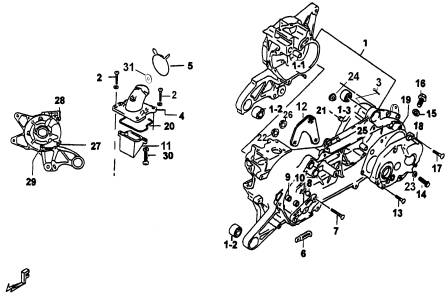

| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
|
|
|
|
|
|
|
| 01 |
522003 |
CRANK CASE COMP. |
1 |
|
|
|
| 01-1 |
GA504PN01 |
PIN, KNOCK
8.5x11x18 |
2 |
|
|
|
| 01-2 |
GA9049902 |
BUSH COMP. |
2 |
|
|
|
| 01-3 |
522004 |
BUSH COMP. |
1 |
|
|
|
| 02 |
S79601 |
SCREW, SOCKET HEAD
M6x20 |
4 |
|
|
|
| 03 |
S21204 |
BOLT, HEX. HEAD |
1 |
|
|
|
| 04 |
521125 |
PIPE ASSY.,
INTAKE |
1 |
|
|
|
| 05 |
422051 |
CLIP |
1 |
|
|
|
| 06 |
GA501SR01 |
CLAMP |
1 |
|
|
|
| 07 |
S70602 |
SCREW, HEX. SCCKET
M6X1.0X25L |
2 |
|
|
|
| 08 |
GA504PN02 |
PIN, DOWEL
6.5x9x10 |
2 |
|
|
|
| 09 |
GA504BS01 |
BUSH |
1 |
|
|
|
| 10 |
GA6029905 |
CAP SET, STARTER IDLE
GEAR |
1 |
|
|
|
| 11 |
GA5049907 |
VALVE ASSY.,
REED |
1 |
|
|
|
| 12 |
522001 |
HANGER |
1 |
|
|
|
| 13 |
S70602 |
SCREW, HEX. SCCKET
M6X1.0X25L |
5 |
|
|
|
| 14 |
GA904SC12 |
BOLT, FLANGE
6X12 |
1 |
|
|
|
| 15 |
GA504WS02 |
WASHER |
1 |
|
|
|
| 16 |
GA504SC12 |
BOLT, FLANGE
8X12 |
1 |
|
|
|
| 17 |
S70603 |
SCREW, SOCKET HEAD
M6x30 |
1 |
|
|
|
| 18 |
GA602AL07 |
COVER, GEAR BOX |
1 |
|
|
|
| 19 |
GA504PK05 |
GASKET, GEAR BOX
COVER |
1 |
|
|
|
| 20 |
421008 |
GASKET, INTAKE
PIPE |
1 |
|
|
|
| 21 |
522000 |
PIN, BRAKE SHOE
M10 |
1 |
|
|
|
| 22 |
GA551NT01 |
NUT, SELFLOCK
M10X1.0 |
1 |
|
|
|
| 23 |
W99601 |
WASHER 6X12X2 |
1 |
|
|
|
| 24 |
522005 |
O RING |
1 |
|
|
|
| 25 |
GA504PN01 |
PIN, KNOCK
8.5x11x18 |
2 |
|
|
|
| 26 |
N25202 |
NUT, FLANGE |
1 |
|
|
|
| 27 |
S70606 |
SCREW, SOCKET HEAD
M6x75 |
1 |
|
|
|
| 28 |
S70605 |
SCREW, SOCKET HEAD
M6x85 |
1 |
|
|
|
| 29 |
S70601 |
SCREW, SOCKET HEAD
M6X45 |
3 |
|
|
|
| 30 |
S79401 |
SCREW, SOCKET HEAD
M4x20 |
2 |
|
|
|
| 31 |
421038 |
BUSH 9.8 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
