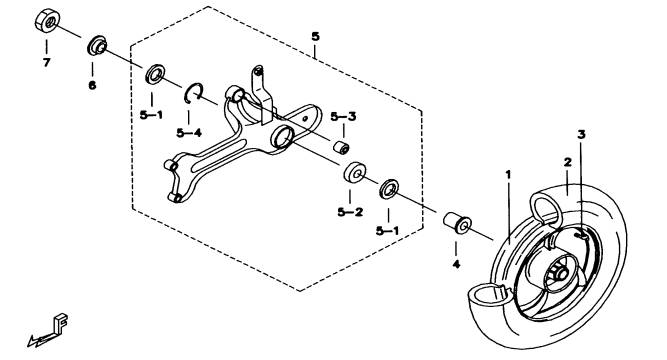

| 34 | REAR WHEEL | BK1-C | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 413406YSG | RIM COMP., REAR WHEEL 3.0-12 (AL)(SILVER) | 1 | ||||
| 02 | 412928-S | TIRE 120/70-12 | 1 | ||||
| 03 | GF5299901 | INLET COMP., AIR | 1 | ||||
| 04 | 412916 | COLLAR | 1 | ||||
| 05 | 413411 | REAR FORK ASSY. | 1 | ||||
| 05-1 | 412917 | OIL SEAL | 2 | ||||
| 05-2 | 412918 | BEARING | 1 | ||||
| 05-3 | GA5049904 | BUSH COMP. | 1 | ||||
| 05-4 | R01001 | RETAINER RING, C TYPE | 1 | ||||
| 06 | 412921 | COLLAR | 1 | ||||
| 07 | GA558NT03 | NUT, SELFLOCK M16X14 | 1 | ||||
