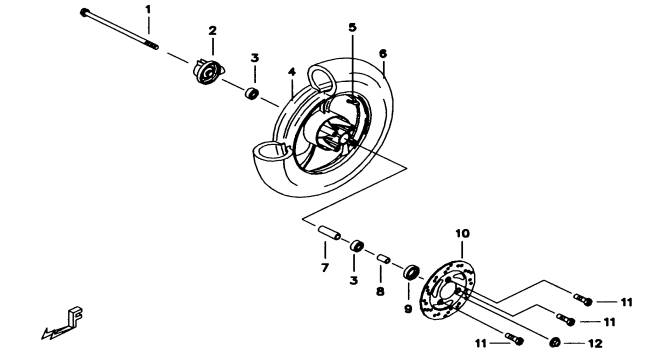

| 29 | FRONT WHEEL | BK1-C | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | GI529FE01 | SHAFT, FRONT WHEEL 12X218 | 1 | ||||
| 02 | 401692 | GEAR COMP., SPEEDOMETER | 1 | ||||
| 03 | GI529BR01YT | BEARING 12X32X10 | 2 | ||||
| 04 | 412930 | RIM COMP., FRONT WHEEL MT 2.15-14 | 1 | ||||
| 05 | GF5299901 | INLET COMP., AIR | 1 | ||||
| 06 | 412938-S | TIRE 3.00-14 | 1 | ||||
| 07 | 401792 | COLLAR SET | 1 | ||||
| 08 | GI529BS01 | COLLAR | 1 | ||||
| 09 | GI529OS01 | OIL SEAL 18X35X7 | 1 | ||||
| 10 | 410161Y | DISC, BRAKE 190mm | 1 | ||||
| 11 | GA558SC02 | BOLT M8X1.25X15L | 3 | ||||
| 12 | N25201 | NUT, SELFLOCK M12X1.25 | 1 | ||||
