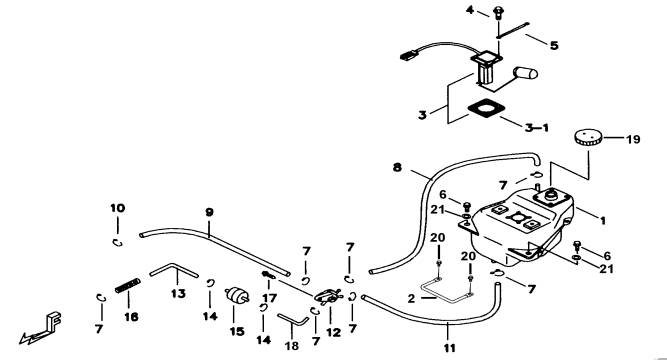

| 21 | FUEL TANK | BK1-C | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 412124 | TANK, FUEL | 1 | ||||
| 02 | 412129 | HANDLING BAR, FUEL TANK | 1 | ||||
| 03 | 401813 | GAUGE ASSY., FUEL LEVEL | 1 | ||||
| 03-1 | 401710 | GASKET | 1 | ||||
| 04 | S07501 | BOLT,HEX HEAD | 4 | ||||
| 05 | 412120 | HARNESS, EARTH | 1 | ||||
| 06 | GA555SC05 | BOLT, OUTLET M6X1.0X16L | 4 | ||||
| 07 | R36801 | CLIP ∮8.5 | 7 | ||||
| 08 | 412122 | HOSE, NEGATIVE PRESSURE | 1 | ||||
| 09 | 401018 | HOSE, AIR VENT 4.5X8.5X235 | 1 | ||||
| 10 | GA553SR04 | CLIP∮7.5 | 1 | ||||
| 11 | 412113 | HOSE | 1 | ||||
| 12 | GA5539902 | COCK ASSY., FUEL | 1 | ||||
| 13 | 401809 | HOSE | 1 | ||||
| 14 | R36901 | CLIP | 2 | ||||
| 15 | GA5539904 | FILTER, FUEL | 1 | ||||
| 16 | 401014 | SPRING 12X100X0.8 | 1 | ||||
| 17 | GA553SC01 | BOLT, FLANGE M6X1.0X16L | 1 | ||||
| 18 | 412103 | HOSE #2 | 1 | ||||
| 19 | 412126 | CAP COMP. FILLER | 1 | ||||
| 20 | GA556SC01 | BOLT, FLANGE M6X1.0X12L | 2 | ||||
| 21 | W99605 | WASHER | 2 | ||||
