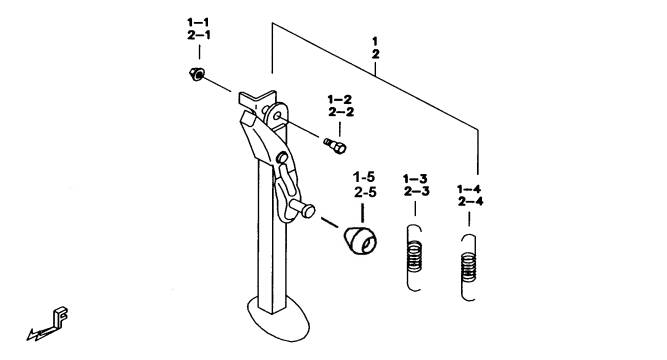

| 20 | STAND | BK1-C | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 414010 | STAND COMP., SIDE LH. | 1 | ←635381 | |||
| 01-1 | GA551NT04 | NUT, HEX. HEAD M8 | 1 | ||||
| 01-2 | S96804 | BOLT M8 | 1 | ||||
| 01-3 | 412032 | SPRING |
1 | ||||
| 01-4 | 412033 | SPRING |
1 | ||||
| 01-5 | 412035 | BUBDER | 1 | ||||
| 01A | 414010 | STAND COMP., SIDE LH. | 1 | 635382→ | |||
| 02 | 414011 | STAND COMP., SIDE RH. | 1 | ←635381 | |||
| 02-1 | GA551NT04 | NUT, HEX. HEAD M8 | 1 | ||||
| 02-2 | S96804 | BOLT M8 | 1 | ||||
| 02-3 | 412032 | SPRING |
1 | ||||
| 02-4 | 412033 | SPRING |
1 | ||||
| 02-5 | 412035 | BUBDER | 1 | ||||
| 02A | 414011 | STAND COMP., SIDE RH. | 1 | 635382→ | |||
