| 19 |

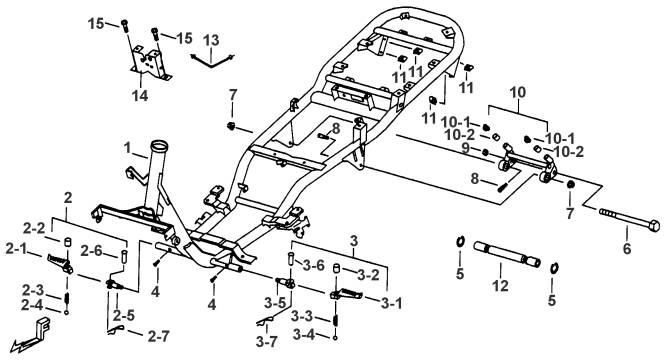

FRAME |
|
|
BK1-C |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
411961 |
FRAME |
1 |
|
|
|
| 02 |
411953 |
FOOTREST ASSY., RH., FRONT |
1 |
|
|
|
| 02-1 |
GF519AL06 |
FOOTREST ASSY., PILLION, RH. |
1 |
|
|
|
| 02-2 |
GF519FE01 |
COLLAR, PIN 6X8X20 |
1 |
|
|
|
| 02-3 |
GF519SP01 |
SPRING, COMPRESSION 6X12.5 |
1 |
|
|
|
| 02-4 |
GF519FE04 |
BALL ∮6.35 |
1 |
|
|
|
| 02-5 |
411950 |
BRKT, FOOTREST, PILLION, RH. |
1 |
|
|
|
| 02-6 |
GA551PN02 |
PIN 6X34 |
1 |
|
|
|
| 02-7 |
GA551PN01 |
COTTER PIN 1.5X30 |
1 |
|
|
|
| 03 |
411952 |
FOOTREST ASSY., LH., FRONT |
1 |
|
|
|
| 03-1 |
GF519AL05 |
FOOTREST ASSY., PILLON, LH. |
1 |
|
|
|
| 03-2 |
GF519FE01 |
COLLAR, PIN 6X8X20 |
1 |
|
|
|
| 03-3 |
GF519SP01 |
SPRING, COMPRESSION 6X12.5 |
1 |
|
|
|
| 03-4 |
GF519FE04 |
BALL ∮6.35 |
1 |
|
|
|
| 03-5 |
411949 |
BRKT, FOOTREST, PILLION, LH. |
1 |
|
|
|
| 03-6 |
GA551PN02 |
PIN 6X34 |
1 |
|
|
|
| 03-7 |
GA551PN01 |
COTTER PIN 1.5X30 |
1 |
|
|
|
| 04 |
S79604 |
BOLT, FLANGE |
2 |
|
|
|
| 05 |
R00701 |
RETAINER RING, C TYPE ∮16 |
2 |
|
|
|
| 06 |
S21203 |
BOLT, HEX. HEAD |
1 |
|
|
|
| 07 |
GA551NT01 |
NUT, SELFLOCK M10X1.0 |
2 |
|
|
|
| 08 |
S06101 |
BOLT, HANGER M10 |
2 |
|
|
|
| 09 |
N25201 |
NUT, SELFLOCK M12X1.25 |
1 |
|
|
|
| 10 |
BH1199903 |
ROCKER ARM ASSY., HANGER |
1 |
|
|
|
| 10-1 |
GI519RB01 |
DAMPER, RUBBER |
2 |
|
|
|
| 10-2 |
GI519SP01 |
SPRING, COMPRESSION |
2 |
|
|
|
| 11 |
GA552NT01 |
NUT, SPRING M4 |
4 |
|
|
|
| 12 |
BH102FE01 |
SLEEVE, HANGER |
1 |
|
|
|
| 13 |
411951 |
CABLE, LOCK SET, SEAT |
1 |
|
|
|
| 14 |
BH1199904 |
LOCK SET, SEAT |
1 |
|
|
|
| 15 |
GA556SC01 |
BOLT, FLANGE M6X1.0X12L |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
