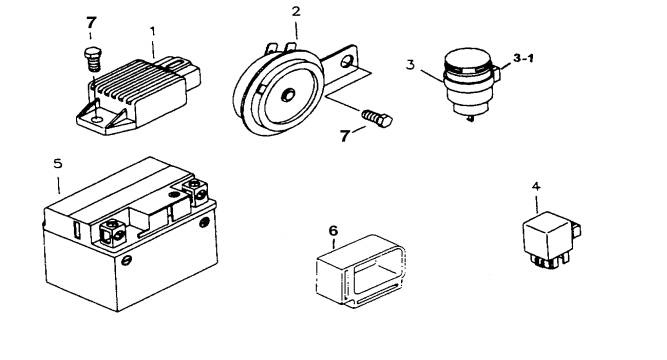

| 14 | BATTERY, HORN, RELAY, RECTIFIER | BK1-C | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | GA5140001 | RECTIFIER ASSY. | 1 | ||||
| 02 | GF5149906 | HORN ASSY. | 1 | ||||
| 03 | 440800A | RELAY, TURN SIGNAL | 1 | ||||
| 03-1 | 440745 | BUSH, RUBBER | 1 | ||||
| 04 | GA5100004 | RELAY | 1 | ||||
| 05 | 440805 | BATTERY 12V 9AH | 1 | ||||
| 06 | 400519 | BUSH, RUBBER | 1 | ||||
| 07 | GA510SC03 | SCREW, HEX. HEAD M6X16 | 2 | ||||
