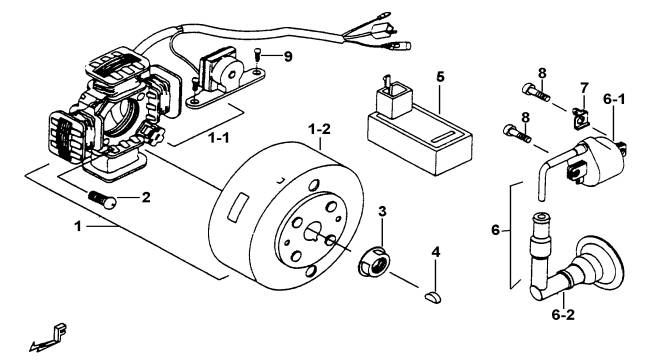

| 13 | FLYWHEEL MAGNETO AND IGNITION COIL | BK1-C | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 440931 | FLYWHEEL MAGNETO ASSY. | 1 | ||||
| 01-1 | GE5139904 | STATOR ASSY. | 1 | ||||
| 01-2 | 440938 | ROTOR ASSY. | 1 | ||||
| 02 | S79603 | SCREW, SOCKET HEADM6X25 | 2 | ||||
| 03 | GA501NT01 | NUT, FLANGE M10 | 1 | ||||
| 04 | GA501KY01 | KEY | 1 | ||||
| 05 | 400543 | C.D.I. | 1 | ←616326 | |||
| 05A | GE5139902 | C.D.I (UNLIMITED SPEED) | 1 | 616327→ | |||
| 06 | 440937 | COIL COMP., IGNITION | 1 | ||||
| 06-1 | 440942 | COIL SET, IGNITION | 1 | ||||
| 06-2 | GE513RB01 | CAP SET, SPARK PLUG | 1 | ||||
| 07 | 440564 | EARTH TERMINAL | 1 | ||||
| 08 | S70607 | SCREW, SOCKET HEAD M6X20 | 2 | ||||
| 09 | S79503 | SCREW, SOCKET HEAD | 2 | ||||
