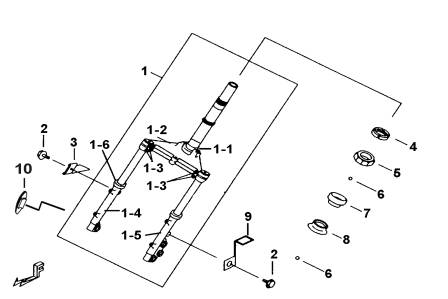

| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
|
|
|
|
|
|
|
| 1 |
412704 |
FORK
COMP., FRONT (FOR RIM COMP,FRONT WHEEL 3.5-13 ALUMINUM ALLOY ) |
1 |
|
|
|
| 10 |
412715 |
REFLECTOR
ASSY., SIDE |
2 |
|
|
|
| 1-1 |
GF527PS01 |
RACE,
STEERING, OVTER, LOWER |
1 |
|
|
|
| 1-2 |
401970 |
CENTREL
BAR ASSY. |
1 |
|
|
|
| 1-3 |
S20004 |
BOLT,FLANGE |
4 |
|
|
|
| 1-4 |
412705 |
FORK
COMP., FRONT RH. |
1 |
|
|
|
| 1-5 |
412706 |
FORK
COMP., FRONT LH. |
1 |
|
|
|
| 1-6 |
401876 |
SEAL,
OIL |
2 |
|
|
|
| 2 |
GA556SC01 |
BOLT,
FLANGE M6X1.0X12L |
2 |
|
|
|
| 3 |
GI527PS02 |
BRKT,
CABLE, SPEEDOMETER |
1 |
|
|
|
| 4 |
GA556NT01 |
NUT,
SLOTTED |
1 |
|
|
|
| 5 |
GA556PS03 |
RACE,
STEERING, INNER, UPPER |
1 |
|
|
|
| 6 |
GA556FE01 |
BALL |
55 |
|
|
|
| 7 |
GA556PS04 |
RACE,
STEERING, INNER |
1 |
|
|
|
| 8 |
GF527PS02 |
RACE,
STEERING INNER, LOWER |
1 |
|
|
|
| 9 |
410155 |
BRKT,
BRAKE HOSE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
