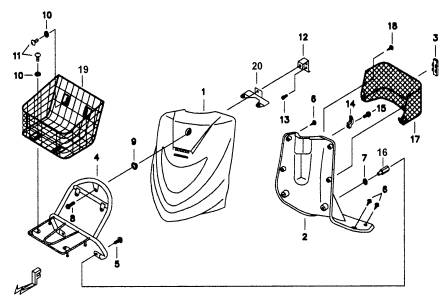

| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
|
|
|
|
|
|
|
| 1 |
454022A |
LEG SHIELD
FRONT |
1 |
|
|
|
| 10 |
W99605 |
WASHER |
4 |
|
OPTION |
|
| 11 |
GA555SC03 |
SCREW, AN HEAD
M6X16 |
4 |
|
OPTION |
|
| 12 |
401685 |
BRKT |
1 |
|
|
|
| 13 |
S79602 |
SCREW, SOCKET HEAD
M6x16 |
1 |
|
|
|
| 14 |
454005 |
HOOK LUGGAGE |
1 |
|
|
|
| 15 |
GA558SC05 |
BOLT, HEX. HEAD
M6x28 |
1 |
|
|
|
| 16 |
413961 |
SCREW, SPACER |
2 |
|
OPTION |
|
| 17 |
413965 |
BASKET |
1 |
|
OPTION |
|
| 18 |
S50506 |
SCREW, TAPPING |
2 |
|
OPTION |
|
| 19 |
413964 |
BASKET |
1 |
|
OPTION |
|
| 2 |
454010 |
COVER SET, LEG
SHIELD |
1 |
|
|
|
| 20 |
412503 |
BRACKET |
1 |
|
|
|
| 3 |
BH125PL04 |
COVER SET, LEG
SHIELD, SMALL |
1 |
|
|
|
| 4 |
413959 |
BRKT, BASKET |
1 |
|
OPTION |
|
| 5 |
GA904SC26 |
SCREW, SOCKET HEAD
M6X16 |
2 |
|
|
|
| 6 |
S57501 |
SCREW,OVAL HEAD,
FLANGE M5X14 |
8 |
|
|
|
| 6A |
S57501 |
SCREW,OVAL HEAD,
FLANGE M5X14 |
6 |
|
OPTION |
|
| 7 |
W99602 |
WASHER
6.5X12X1.0 |
2 |
|
|
|
| 8 |
S72602 |
BOLT, HEX. HEAD |
1 |
|
|
|
| 9 |
GA555WS01 |
WASHER |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
