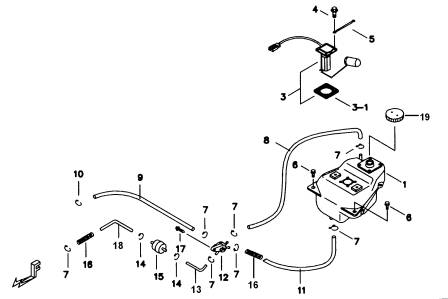

| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
|
|
|
|
|
|
|
| 1 |
412124 |
TANK, FUEL |
1 |
|
|
|
| 10 |
GA553SR04 |
CLIP∮7.5 |
1 |
|
|
|
| 11 |
412113 |
HOSE |
1 |
|
|
|
| 12 |
GA5539902 |
COCK ASSY.,
FUEL |
1 |
|
|
|
| 13 |
412121 |
HOSE |
1 |
|
|
|
| 14 |
R36901 |
CLIP |
2 |
|
|
|
| 15 |
GA5539904 |
FILTER, FUEL |
1 |
|
|
|
| 16 |
GA553SP01 |
SPRING |
2 |
|
|
|
| 17 |
GA553SC01 |
BOLT, FLANGE
M6X1.0X16L |
1 |
|
|
|
| 18 |
412103 |
HOSE #2 |
1 |
|
|
|
| 19 |
412126 |
CAP COMP.
FILLER |
1 |
|
|
|
| 3 |
401813 |
GAUGE ASSY., FUEL
LEVEL |
1 |
|
|
|
| 3-1 |
401710 |
GASKET |
1 |
|
|
|
| 4 |
S07501 |
BOLT,HEX HEAD |
4 |
|
|
|
| 5 |
412120 |
HARNESS, EARTH |
1 |
|
|
|
| 6 |
GA555SC05 |
BOLT, OUTLET
M6X1.0X16L |
4 |
|
|
|
| 7 |
R36801 |
CLIP ∮8.5 |
7 |
|
|
|
| 8 |
412122 |
HOSE, NEGATIVE
PRESSURE |
1 |
|
|
|
| 9 |
412128 |
HOSE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
