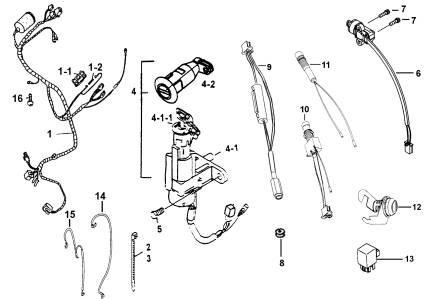

| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
|
|
|
|
|
|
|
| 1 |
440970 |
WIRING HARNESS |
1 |
|
|
|
| 10 |
440950 |
HEATING SWITCH |
1 |
|
|
|
| 11 |
440951 |
HEATING LAMP |
1 |
|
|
|
| 1-1 |
GF5159906 |
CASE SET, FUSE |
1 |
|
|
|
| 12 |
440957 |
LOCK, CARGO BOX |
1 |
|
|
|
| 1-2 |
GF5159907 |
FUSE 7A |
1 |
|
|
|
| 13 |
440956 |
RELAY, THERMOSTATIC
BAG |
2 |
|
|
|
| 14 |
440966 |
HARNESS,
STARTING |
1 |
|
|
|
| 15 |
400533 |
HARNESS, EARTH |
1 |
|
|
|
| 16 |
GA556SC01 |
BOLT, FLANGE
M6X1.0X12L |
2 |
|
|
|
| 2 |
400535 |
CLAMP L300 |
2 |
|
|
|
| 3 |
GA510SR02 |
CLAMP L200 |
2 |
|
|
|
| 4 |
440775 |
LOCK ASSY. |
1 |
|
|
|
| 4-1 |
440774 |
LOCK SET,
STEERING |
1 |
|
|
|
| 4-1-1 |
BH115PL01 |
CAP, INDICATOR |
1 |
|
|
|
| 4-2 |
440744 |
LOCK SET, SEAT |
1 |
|
|
|
| 5 |
GA510SC03 |
SCREW, HEX. HEAD
M6X16 |
2 |
|
|
|
| 6 |
440935 |
SWITCH, SIDE
STAND |
2 |
|
|
|
| 7 |
S79501 |
SCREW, SOCKET HEAD
M5x16 |
4 |
|
|
|
| 8 |
440948 |
BUSH |
1 |
|
|
|
| 9 |
440949 |
WIRING |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
