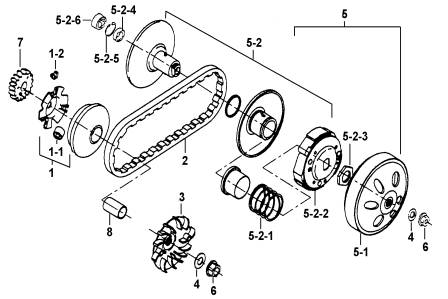

| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
|
|
|
|
|
|
|
| 1 |
490173 |
PULLEY COMP.,
DRIVE |
1 |
|
|
|
| 1-1 |
490252 |
ROLLER COMP., MOVABLE
DRIVE FACE |
1 |
|
|
|
| 1-2 |
490256 |
GUIDE, MOVABLE
DRIVEFACE PLATE |
3 |
|
|
|
| 2 |
490100 |
V-BELT, DRIVE |
1 |
|
|
|
| 3 |
490172 |
FACE, FIXED
DRIVE |
1 |
|
|
|
| 4 |
W99204 |
WASHER
12.2X29X2.3t |
2 |
|
|
|
| 5 |
490810A |
PULLEY COMP.,
DRIVEN |
1 |
|
|
|
| 5-1 |
490177 |
HOUSING COMP.,
CLUTCH |
1 |
|
|
|
| 5-2 |
490809 |
PULLEY ASSY.,
DRIVEN |
1 |
|
|
|
| 5-2-1 |
490284 |
SPRING, MOVABLE
DRIVEN FACE 53X143 |
1 |
|
|
|
| 5-2-2 |
490808 |
CLUTCH ASSY.,
SHOE |
1 |
|
|
|
| 5-2-3 |
RT406NT01 |
NUT, HEX.
M28X1.0 |
1 |
|
|
|
| 5-2-4 |
490371 |
BEARING |
1 |
|
|
|
| 5-2-5 |
CTVG227001 |
CIR-CLIP |
1 |
|
|
|
| 5-2-6 |
490382 |
NEEDLE BEARING |
1 |
|
|
|
| 6 |
N10202 |
NUT, FLANGE
12X8 |
2 |
|
|
|
| 7 |
400333 |
GEAR, DRIVEN,
STARTING 20T |
1 |
|
|
|
| 8 |
490174 |
SPACER |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
