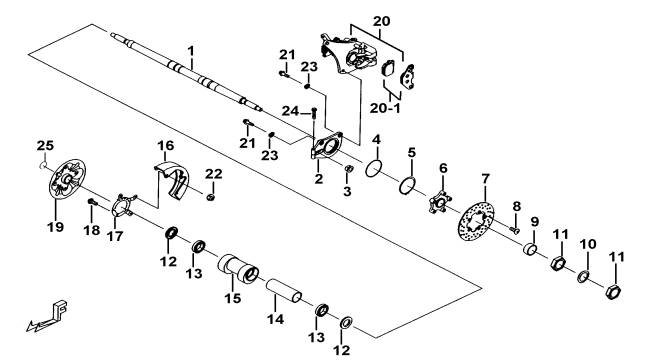

| 218 | REAR AXLE | FCB-U | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 512820 | REAR AXLE | 1 | ||||
| 02 | 512821 | HOLDER, CALIPER ASSY., REAR | 1 | ||||
| 03 | 512831 | SPACER | 1 | ||||
| 04 | 512833 | O RING | 1 | ||||
| 05 | R00001 | C CLIP | 1 | ||||
| 06 | 512822 | BASE, BRAKE | 1 | ||||
| 07 | 513413Y | DISC, BRAKE 220 mm | 1 | ||||
| 08 | S72001 | SCREW, SOCKET | 5 | ||||
| 09 | 512830 | SPACER | 1 | ||||
| 10 | W31001 | SPRING WASHER | 1 | ||||
| 11 | N01002 | NUT | 2 | ||||
| 12 | 512828 | OIL SEAL | 2 | ||||
| 13 | 512829 | BEARING | 2 | ||||
| 14 | 512825 | SPACER | 1 | ||||
| 15 | 512826 | REAR AXLE FIX SEAT | 1 | ||||
| 16 | 512832 | CHAIN PROTECIVE COVER | 1 | ||||
| 17 | 512824 | ADJUST BOARD | 1 | ||||
| 18 | GA558SC02 | BOLT M8X1.25X15L | 3 | ||||
| 19 | 512827 | BASE, CHAIN | 1 | ||||
| 20 | 514300 | CALIPER, REAR | 1 | ||||
| 20-1 | 514069 | PAD | 1 | ||||
| 21 | S20802 | BOLT, FLANGE | 2 | ||||
| 22 | GA554NT04 | NUT, FLANGE M6xP1.0 | 3 | ||||
| 23 | GA556WS04 | SPRING WASHER 8.2X3.2X2t | 2 | ||||
| 24 | S21810 | BOLT, FLANGE | 1 | ||||
| 25 | R00002 | CLIP | 1 | ||||
