| 217 |

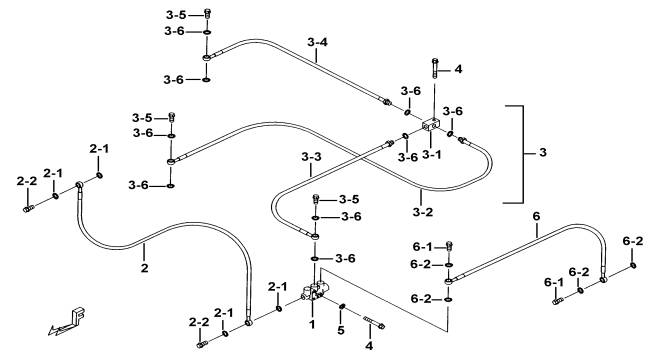

REAR DISTRIBUTOR |
|
FCB-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
513511 |
DISTRIBUTOR, FRONT |
1 |
|
|
|
| 02 |
514302 |
HOSE ASSY. |
1 |
|
|
|
| 02-1 |
GA559WS04 |
WASHER, 10.2X15X1.2t |
4 |
|
|
|
| 02-2 |
S21001 |
BOLT M10X1.25X21L |
2 |
|
|
|
| 03 |
514306 |
HOSE ASSY. |
1 |
|
|
|
| 03-1 |
514039 |
THREE WAY |
1 |
|
|
|
| 03-2 |
514041 |
HOSE ASSY. |
1 |
|
|
|
| 03-3 |
514042 |
HOSE ASSY. |
1 |
|
|
|
| 03-4 |
514040 |
HOSE ASSY. |
1 |
|
|
|
| 03-5 |
S21001 |
BOLT M10X1.25X21L |
3 |
|
|
|
| 03-6 |
GA559WS04 |
WASHER, 10.2X15X1.2t |
9 |
|
|
|
| 04 |
S24614 |
BOLT, FLANGE |
3 |
|
|
|
| 05 |
W10601 |
SPRING WASHER |
2 |
|
|
|
| 06 |
514304 |
HOSE ASSY. |
1 |
|
|
|
| 06-1 |
S21001 |
BOLT M10X1.25X21L |
2 |
|
|
|
| 06-2 |
GA559WS04 |
WASHER, 10.2X15X1.2t |
4 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
