| 212 |

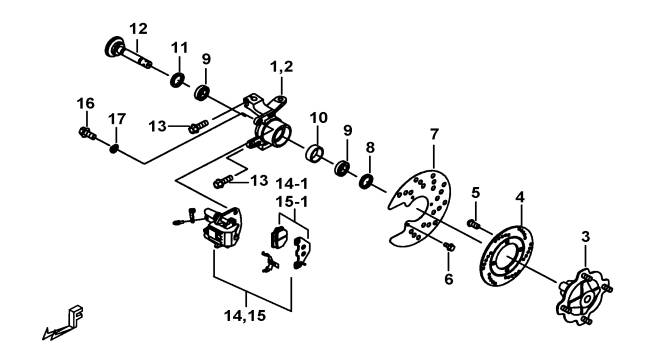

STEERING KNUCKLE |
|
FCB-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
513320 |
KNUCKLE, STEERING, LH |
1 |
|
|
|
| 02 |
513321 |
KNUCKLE, STEERING, RH |
1 |
|
|
|
| 03 |
512927 |
HUB, FRONT WHEEL |
2 |
|
|
|
| 04 |
512925Y |
DISC |
2 |
|
|
|
| 05 |
S72001 |
SCREW, SOCKET |
8 |
|
|
|
| 06 |
GA555SC02 |
SCREW, AN HEAD |
6 |
|
|
|
| 07 |
512926 |
PROTECTIVE COVER |
2 |
|
|
|
| 08 |
513325 |
OIL SEAL, OUTER |
2 |
|
|
|
| 09 |
512806 |
BEARING |
4 |
|
|
|
| 10 |
513324 |
SPACER |
2 |
|
|
|
| 11 |
513322 |
OIL SEAL, INNER |
2 |
|
|
|
| 12 |
512924 |
FRONT AXLE |
2 |
|
|
|
| 13 |
S20021 |
BOLT |
4 |
|
|
|
| 14 |
513505 |
CALIPER ASSY., FRONT, LH |
1 |
|
|
|
| 14-1 |
514038 |
PAD |
1 |
|
|
|
| 15 |
513506 |
CALIPER ASSY., FRONT, RH |
1 |
|
|
|
| 15-1 |
514038 |
PAD |
1 |
|
|
|
| 16 |
S21809 |
BOLT M8X1.25X18L |
4 |
|
|
|
| 17 |
GA556WS04 |
SPRING WASHER
8.2X3.2X2t |
4 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
