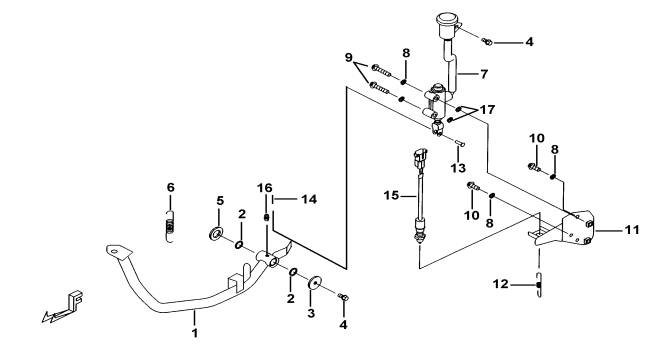

| 209 | BRAKE PEDAL | FCB-U | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 514100 | BRAKE PEDAL | 1 | ||||
| 02 | 514103 | O RING | 2 | ||||
| 03 | W99626 | WASHER | 1 | ||||
| 04 | S20603 | BOLT, FLANGE M6X12 | 2 | ||||
| 05 | W99702 | WASHER | 1 | ||||
| 06 | GA551SP02 | SPRING 16X114X2.8 | 1 | ||||
| 07 | 514101 | MASTER CYLINDER ASSY., PEDAL | 1 | ||||
| 08 | GA556WS04 | SPRING WASHER 8.2X3.2X2t | 4 | ||||
| 09 | S20805 | BOLT, FLANGE 8X42 | 2 | ||||
| 10 | S20814 | BOLT, FLANGE | 2 | ||||
| 11 | 514104 | BRACKET, MASTER CYLINDER, PEDAL | 1 | ||||
| 12 | GA551SP04 | SPRING 9X107X1.4 | 1 | ||||
| 13 | P31701 | PIN | 1 | ||||
| 14 | GA551PN01 | COTTER PIN 1.5X30 | 1 | ||||
| 15 | 514109 | SWITCH, BRAKE LAMP | 1 | ||||
| 16 | S96604 | GREASE NIPPLE | 1 | ||||
| 17 | 514114 | SPACER | 2 | ||||
