| 202 |

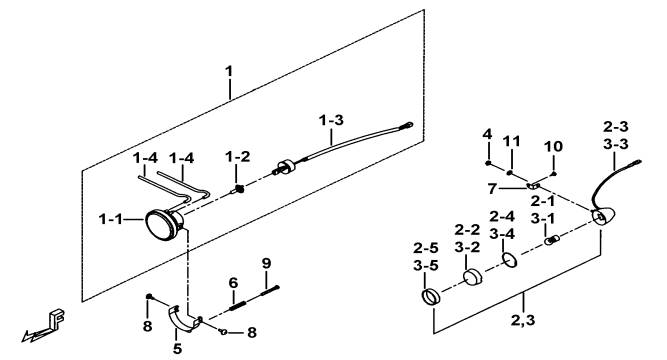

HEAD LAMP ASSY. |
|
FCB-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
511717 |
HEAD LAMP ASSY. |
2 |
|
|
|
| 01-1 |
514073 |
HEAD LAMP |
2 |
|
|
|
| 01-2 |
514074 |
BULB |
2 |
|
|
|
| 01-3 |
514075 |
SOCKET COMP. |
2 |
|
|
|
| 01-4 |
GE521PP02 |
HOSE, AIR VENT |
4 |
|
|
|
| 02 |
511718 |
TURN SIGNAL LAMP COMP, LH |
1 |
|
|
|
| 02-1 |
514030 |
BULB |
1 |
|
|
|
| 02-2 |
514031 |
LENS, TURN SIGNAL , LH |
1 |
|
|
|
| 02-3 |
514033 |
WIRING SET, TURN SIGNAL , LH |
1 |
|
|
|
| 02-4 |
511728 |
GASKET, RUBBER |
1 |
|
|
|
| 02-5 |
511726 |
WATERPROOF BAND |
1 |
|
|
|
| 03 |
511719 |
TURN SIGNAL LAMP COMP, RH |
1 |
|
|
|
| 03-1 |
514030 |
BULB |
1 |
|
|
|
| 03-2 |
514032 |
LENS, TURN SIGNAL , RH |
1 |
|
|
|
| 03-3 |
514034 |
WIRING SET, TURN SIGNAL , LH |
1 |
|
|
|
| 03-4 |
511728 |
GASKET, RUBBER |
1 |
|
|
|
| 03-5 |
511726 |
WATERPROOF BAND |
1 |
|
|
|
| 04 |
GA552NT05 |
NUT, FLANGE M5 |
2 |
|
|
|
| 05 |
511720 |
ADJUST SEAT |
2 |
|
|
|
| 06 |
511724 |
SPRING |
2 |
|
|
|
| 07 |
511727 |
BRKT. |
2 |
|
|
|
| 08 |
511730 |
BOLT |
4 |
|
|
|
| 09 |
S46506 |
BOLT |
2 |
|
|
|
| 10 |
S57501 |
SCREW,OVAL HEAD, FLANGE M5X14 |
2 |
|
|
|
| 11 |
W10501 |
SPRING WASHER |
2 |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
