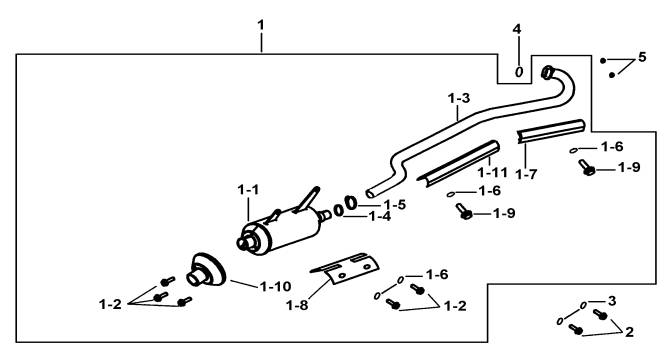

| 116 | MUFFLER | FCB-U | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 923287 | MUFFLER ASSY. | 1 | ||||
| 01-1 | 923013 | BODY COMP, MUFFLER | 1 | ||||
| 01-10 | 923017 | PROTECTOR COVER, | 1 | ||||
| 01-11 | 923286 | PROTECTOR COVER, EXHAUST PIPE | 1 | ||||
| 01-2 | S20603 | BOLT, FLANGE M6X12 | 7 | ||||
| 01-3 | 923012 | EXHAUST PIPE | 1 | ||||
| 01-4 | 923019 | GASKET, PLUMBAGO | 1 | ||||
| 01-5 | 422039 | CLAMP. ∮38 | 1 | ||||
| 01-6 | W99506 | WASHER | 6 | ||||
| 01-7 | 923015 | PROTECTOR COVER, EXHAUST PIPE | 1 | ||||
| 01-8 | 923016 | PROTECTOR COVER, MUFFLER | 1 | ||||
| 01-9 | S45605 | SCREW, OVAL HEAD M6X12 | 4 | ||||
| 02 | S20814 | BOLT, FLANGE | 2 | ||||
| 03 | GA556WS04 | SPRING WASHER 8.2X3.2X2t | 2 | ||||
| 04 | 923010 | GASKET, EXHAUST PIPE | 1 | ||||
| 05 | N10801 | NUT, FLANGE 8mm | 2 | ||||
