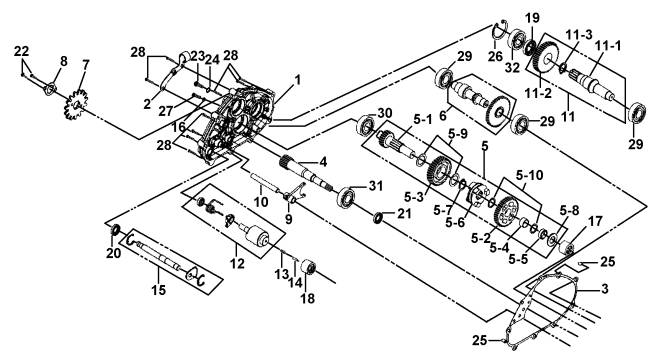

112 MISSION CASE   FCB-U




















ITEM NO. PART NO. DESCRIPTION Q'TY AMEND NOTE
01 923185 MISSION CASE 1
02 923186 INNER COVER STAY A 1
03 923187 MISSION CASE GASKET 1
04 923188 DRIVE SHAFT 1
05 923189 COUNTER SHAFT ASSY. 1
05-1 923190 COUNTER SHAFT 1
05-10 923197 PLAIN WASHER 20MM 2
05-2 923191 COUNTER GEAR A 1
05-3 923192 COUNTER GEAR B COMP 1
05-4 923193 BUSH 2013 1
05-5 923194 SPACER 1
05-6 923195 SLIDING CLAW 1
05-7 923202 EX. CIRCLIP 25 1
05-8 923198 THRUST WASHER 20.5382 1
05-9 923196 PLAIN WASHER 25MM 2
06 923207 REVERSE SHAFT COMP 1
07 923225 DRIVE SPROCKET 1
08 923226 DRIVE SPROCKET FIXING PLATE 1
09 923211 SHIFT FORK SHAFT 1
10 923210 SHIFT FIRK SHAFT 1
11 923200 FINAL SHAFT COMP 1
11-1 923201 FINAL SHAFT 1
11-2 923203 FINAL GEAR 1
11-3 923202 EX. CIRCLIP 25 1
12 923212 SHIFT DRUM COMP 1
13 923217 GEAR INDICATION DRILL SPG 1
14 923218 GEAR INDICATION DRILL 1
15 923221 GEAR SHIFT SPINDLE COMP 1
16 923231 WASHER 8MM 1
17 923199 NEEDLE BRG. HK2016 1
18 923219 NEEDLE BRG. K252910 1
19 923204 OIL SEAL TC 30467 1
20 923220 OIL SEAL TC14266 1
21 923229 OIL SEAL TC25407 2
22 923227 HEX BOLT 610 2
23 923110 DRAIN PLUG BOLT 12MM 1
24 923111 DRAIN PLUG WASHER 12MM 1
25 923230 DOWEL PIN 1014 2
26 923206 CIRCLIP IN. 52 1
27 923232 BOLT FLANGE 812 1
28 923233 FLANGE BOLT 840 9
29 923184 RADIAL BALL BRG. 6204 3
30 923234 RADIAL BALL BRG. 6304 1
31 923228 RADIAL BALL BRG. 6305 1
32 923205 RADIAL BALL BEARING 6205LLU 1
