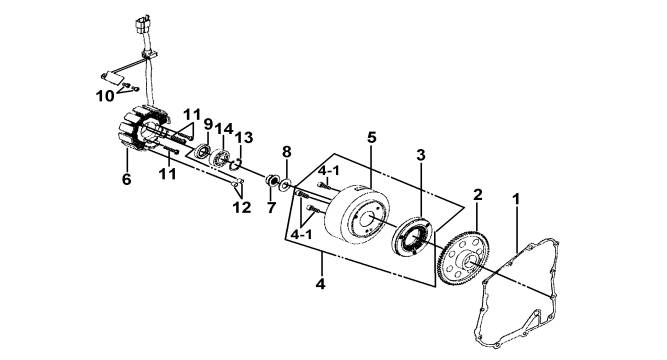

110 AC GEN FLYWHEEL   FCB-U




















ITEM NO. PART NO. DESCRIPTION Q'TY AMEND NOTE
01 923257 R COVER GASKET 1
02 923258 STARTING CLUTCH GEAR COMP 1
03 923411 ONE WAY CLUTCH ASSY. 1
04 923410 AC GEN FLYWHEEL SET 1
04-1 923264 SOCKET BOLT 820 3
05 923412 FLYWHEEL COMP. 1
06 923415 STATOR COMP 1
07 923259 FLANGE NUT 14MM 1
08 923260 THRUST WASHER 14282 1
09 923413 OIL SEAL TC12225 1
10 923261 PAN SCREW 516 2
11 923262 SCREW PAN 640 3
12 923097 DOWEL PIN 814 2
13 923263 IN CIR CLIP 32MM 1
14 923414 RADIAL BALL BRG. 6201LUC3 1
