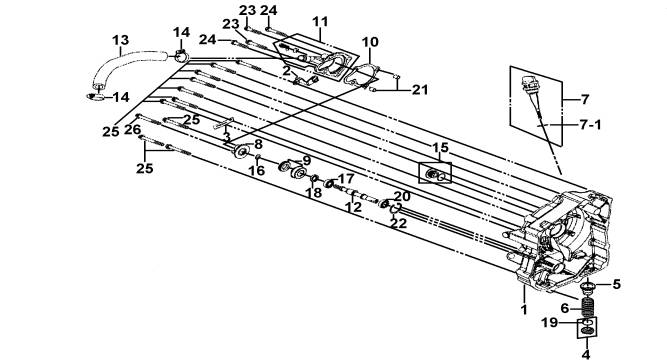

107 R. CASE COVER   FCB-U




















ITEM NO. PART NO. DESCRIPTION Q'TY AMEND NOTE
01 923130 R CASE COVER COMP 1
02 923134 INNER COVER STAY B 1
03 923129 CLAMP 1
04 923131 TAPPET ADJ HOLE CAP ASSY. 1
05 923136 OIL FILTER SCREEN 1
06 923135 OIL FILTER SCREW SPG. 1
07 923137 OIL LEVEL GAUGE ASSY. 1
07-1 923139 O-RING 183 1
08 923140 WATER PUMP IMPELLER 1
09 923142 MECHANICAL SEAL 1
10 923143 WATER PUMP GASKET 1
11 923144 WATER PUMP COVER COMP 1
12 923145 WATER PUMP SHAFT 1
13 923149 WATER HOSE 1
14 923150 WATER HOSE CLAMP A 2
15 923148 ACG. CAP ASSY. 14MM 1
16 923141 WASHER 7.2131.2 1
17 923146 RADIAL BALL BRG.6901 1
18 923147 OIL SEAL 12205 1
19 923132 O-RING 30.8MM 1
20 923151 RADIAL BALL BRG. 6000 1
21 923097 DOWEL PIN 814 2
22 923152 CIR CLIP IN 26 1
23 923127 FLANGE BOLT SH 622 2
24 923153 FLANGE SH BOLT 632 2
25 923154 FLANGE BOLT SH 645 10
26 923115 SH. FLANGE BOLT 670mm 1
