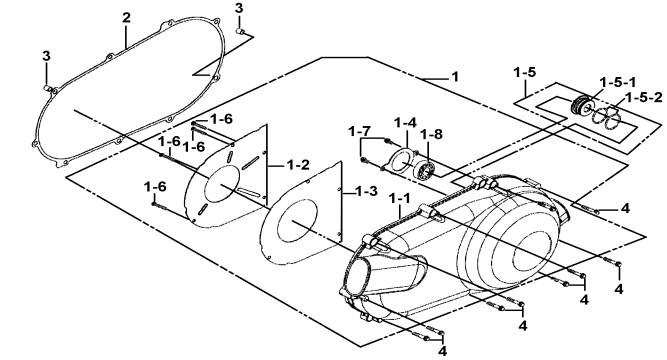

104 L. COVER ASSY   FCB-U




















ITEM NO. PART NO. DESCRIPTION Q'TY AMEND NOTE
01 923087 L COVER ASSY. 1
01-1 923088 L COVER 1
01-2 923089 L. COVER PLATE 1
01-3 923090 L. COVER PLATE GASKET 1
01-4 923091 L. BEARING SETTING PLATE 1
01-5 923092 BEARING STAY COLLAR ASSY. 1
01-5-1 923093 BERING STAY COLLAR 1
01-5-2 923094 O-RING 26.52.0 2
01-6 923096 PAN SCREW 512mm 4
01-7 923098 SH. FLANGE BOLT 612 2
01-8 923100 RADIAL BALL BEARING 6006LLU 1
02 923095 L COVER GASKET 1
03 923097 DOWEL PIN 814 2
04 923099 FLANGE SH BOLT 635 9
