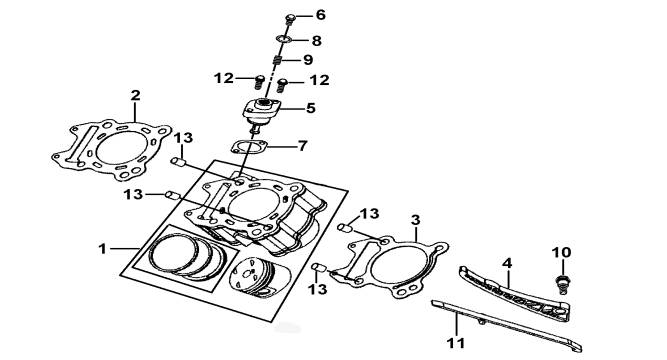

103 CYLINDER ASSY   FCB-U




















ITEM NO. PART NO. DESCRIPTION Q'TY AMEND NOTE
01 923068 CYLINDER ASSY. 1
02 923086 CYLINDER HEAD GASKET 1
03 923075 CYLINDER GASKET 1
04 923076 CAM CHAIN TENSIONER 1
05 923078 TENSIONER LIFTER ASSY. 1
06 923082 ADJUSTER BOLT 1
07 923079 TENSIONER LIFTER GASKET 1
08 923081 O-RING 1
09 923080 ADJUSTER SPRING 1
10 923083 CAM CHAIN TENSIONERPIVOT 1
11 923077 CAM CHAIN GUIDE 1
12 923084 FLANGE SHF BOLT 622 2
13 923085 DOWEL PIN 1220 4
