| 102 |

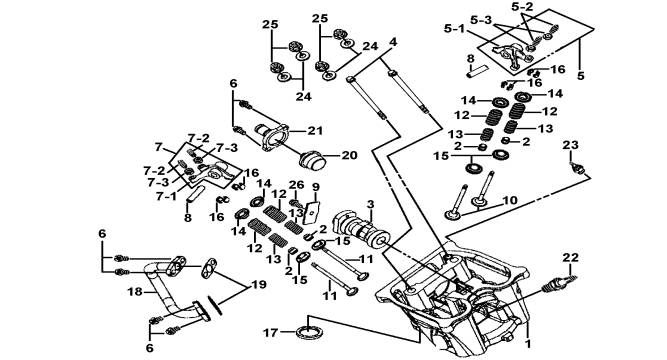

CYLINDER HEAD COMP |
|
FCB-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
923034 |
CYLINDER HEAD COMP |
1 |
|
|
|
| 02 |
923037 |
VALVE STEM SEAL |
4 |
|
|
|
| 03 |
923038 |
CAM SHAFT COMP |
1 |
|
|
|
| 04 |
923065 |
FLANGE SH BOLT 6×90 |
2 |
|
|
|
| 05 |
923039 |
IN. VALVE ROCKER ARM ASSY. |
1 |
|
|
|
| 05-1 |
923040 |
IN. VALVE ROCKER ARM |
1 |
|
|
|
| 05-2 |
923041 |
TAPPET ADJUSTING SCREW |
2 |
|
|
|
| 05-3 |
923042 |
TAPPET ADJUSTING SCREW NUT |
2 |
|
|
|
| 06 |
923064 |
FLANGE BOLT SH 6×16 |
6 |
|
|
|
| 07 |
923043 |
EX. VALVE ROCKER ARM ASSY. |
1 |
|
|
|
| 07-1 |
923044 |
EX. VALVE ROCKER ARM |
1 |
|
|
|
| 07-2 |
923041 |
TAPPET ADJUSTING SCREW |
2 |
|
|
|
| 07-3 |
923042 |
TAPPET ADJUSTING SCREW NUT |
2 |
|
|
|
| 08 |
923045 |
ROCKER ARM SHAFT |
2 |
|
|
|
| 09 |
923046 |
CAM SHAFT SETTING PLATE |
1 |
|
|
|
| 10 |
923047 |
IN. VALVE |
2 |
|
|
|
| 11 |
923048 |
EX. VALVE |
2 |
|
|
|
| 12 |
923049 |
VALVE OUTER SPG. |
4 |
|
|
|
| 13 |
923050 |
VALVE INNER SPG. |
4 |
|
|
|
| 14 |
923051 |
VALVE SPRING RETAINER |
4 |
|
|
|
| 15 |
923052 |
VALVE SPRING SEAT |
4 |
|
|
|
| 16 |
923053 |
VALVE COTTER SET |
1 |
|
|
|
| 17 |
923054 |
EXH. PIPE GASKE |
1 |
|
|
|
| 18 |
923055 |
AIR PIPE COMP |
1 |
|
|
|
| 19 |
923058 |
AIR PIPE GASKET |
2 |
|
|
|
| 20 |
923059 |
THERMOSTAT ASSY. |
1 |
|
|
|
| 21 |
923060 |
THERMOSTAT COVER COMP |
1 |
|
|
|
| 22 |
923066 |
SPARK PLUG (CR8E) |
1 |
|
|
|
| 23 |
923067 |
THERMO UNIT ASSY |
1 |
|
|
|
| 24 |
923061 |
SEALING WASHER 10.5MM |
4 |
|
|
|
| 25 |
923062 |
FLANGE NUT 10MM |
4 |
|
|
|
| 26 |
923063 |
FLANGE BOLT 6×14 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
