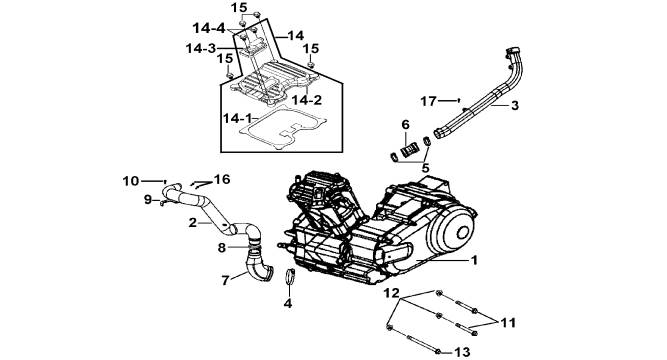

ENGINE ASSY ＆ HEAD COVER |
|
FCB-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
923280 |
ENGINE ASSY. |
1 |
|
|
|
| 02 |
923003 |
CVT INLET TUBE |
1 |
|
|
|
| 03 |
923008 |
CVT OUTLET TUBE |
1 |
|
|
|
| 04 |
923028 |
L COVER DUCT BAND |
1 |
|
|
|
| 05 |
923029 |
CVT OUTLET TUBE BAND |
2 |
|
|
|
| 06 |
923002 |
CVT TUBE, REAR |
1 |
|
|
|
| 07 |
923005 |
CVT TUBE, FRONT |
1 |
|
|
|
| 08 |
924078 |
BAND |
1 |
|
|
|
| 09 |
923276 |
BRKT |
1 |
|
|
|
| 10 |
GA555SC05 |
BOLT, OUTLET M6X1.0X16L |
1 |
|
|
|
| 11 |
S20208 |
BOLT |
2 |
|
|
|
| 12 |
N25201 |
NUT, SELFLOCK M12X1.25 |
3 |
|
|
|
| 13 |
S20207 |
BOLT |
1 |
|
|
|
| 14 |
923030 |
HEAD COVER ASSY. |
1 |
|
|
|
| 14-1 |
923031 |
HEAD COVER PACKING |
1 |
|
|
|
| 14-2 |
923032 |
HEAD COVER |
1 |
|
|
|
| 14-3 |
923033 |
REED VALVE COMP |
1 |
|
|
|
| 14-4 |
923256 |
FLANGE BOLT 6×16 |
2 |
|
|
|
| 15 |
923255 |
HEAD COVER BOLT |
4 |
|
|
|
| 16 |
S79602 |
SCREW, SOCKET HEAD M6x16 |
2 |
|
|
|
| 17 |
GA551SC09 |
BOLT, FLANGE M6X20 |
1 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
