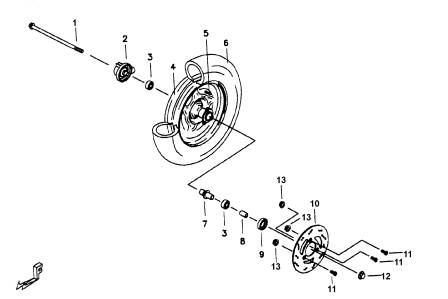

| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
|
|
|
|
|
|
|
| 1 |
GI529FE01 |
SHAFT, FRONT WHEEL 12X218 |
1 |
|
|
|
| 10 |
410161 |
DISC, BRAKE 190 |
1 |
|
|
|
| 11 |
GA558SC02 |
BOLT M10X1.25X15L |
3 |
|
|
|
| 12 |
N25201 |
NUT, SELFLOCK M12X1.25 |
1 |
|
|
|
| 13 |
GA551NT01 |
NUT, SELFLOCK M10X1.0 |
3 |
|
|
|
| 2 |
GI5299901 |
GEAR COMP., SPEEDOMETER |
1 |
|
|
|
| 3 |
GI529BR01 |
BEARING 12X32X10 |
2 |
|
|
|
| 4 |
412934 |
RIM COMP., FRONT WHEEL 3.0-12 (SILVER) |
1 |
|
|
|
| 4A |
412933EU |
RIM COMP., FRONT WHEEL 3.0-12 (BLUE) |
1 |
|
|
|
| 4B |
412933FR |
RIM COMP., FRONT WHEEL 3.0-12 (RED) |
1 |
|
|
|
| 4C |
412933OR |
RIM COMP., FRONT WHEEL 3.0-12 (ORANGE) |
1 |
|
|
|
| 4D |
412933PA |
RIM COMP., FRONT WHEEL 3.0-12 (BLACK) |
1 |
|
|
|
| 4E |
412933YE |
RIM COMP., FRONT WHEEL 3.0-12 (YELLOW) |
1 |
|
|
|
| 5 |
GF5299901 |
INLET COMP., AIR |
1 |
|
|
|
| 6 |
412928 |
TIRE 120/70-12 |
1 |
|
|
|
| 7 |
401792 |
COLLAR SET |
1 |
|
|
|
| 8 |
GI529BS01 |
COLLAR |
1 |
|
|
|
| 9 |
GI529OS01 |
OIL SEAL 18X35X7 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
