| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
|
|
|
|
|
|
|

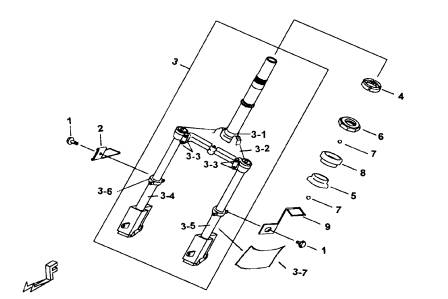

| 1 |
GA556SC01 |
BOLT, FLANGE M6X1.0X12L |
2 |
|
|
|
| 2 |
GI527PS02 |
BRKT, CABLE, SPEEDOMETER |
1 |
|
|
|
| 3 |
402116A |
FORK COMP., FRONT (FOR RIM COMP,FRONT WHEEL 3.5-12) |
1 |
|
|
|
| 3-1 |
GF527PS01 |
RACE, STEERING, OVTER, LOWER |
1 |
|
|
|
| 3-2 |
401970 |
CENTREL BAR ASSY. |
1 |
|
|
|
| 3-3 |
S20004 |
BOLT,FLANGE |
4 |
|
|
|
| 3-4 |
402177 |
FORK COMP., FRONT RH. |
1 |
|
|
|
| 3-5 |
402176 |
FORK COMP., FRONT LH. |
1 |
|
|
|
| 3-6 |
401876 |
SEAL, OIL |
2 |
|
|
|
| 3-7 |
459017 |
EMBLEM, FRONT FORK |
2 |
|
|
|
| 4 |
GA556NT01 |
NUT, SLOTTED |
1 |
|
|
|
| 5 |
GF527PS02 |
RACE, STEERING INNER, LOWER |
1 |
|
|
|
| 6 |
GA556PS03 |
RACE, STEERING, INNER, UPPER |
1 |
|
|
|
| 7 |
GA556FE01 |
BALL |
55 |
|
|
|
| 8 |
GA556PS04 |
RACE, STEERING, INNER |
1 |
|
|
|
| 9 |
410155 |
BRKT, BRAKE HOSE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
