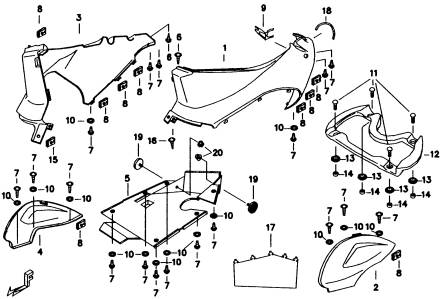

| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
|
|
|
|
|
|
|
| 1 |
453001 |
COVER, SIDE LH. |
1 |
|
|
|
| 10 |
GA552WS05 |
WASHER |
14 |
|
|
|
| 11 |
S72802 |
BOLT, SOCKET |
4 |
|
|
|
| 12 |
402131 |
HANDLE (SILVER) |
1 |
|
|
|
| 12A |
402131C |
HANDLE (CHROMIUM PLATED) |
1 |
|
|
|
| 12B |
412402FR |
HANDLE (RED) |
1 |
|
|
|
| 12C |
412402OR |
HANDLE (ORANGE) |
1 |
|
|
|
| 12D |
412402YE |
HANDLE (YELLOW) |
1 |
|
|
|
| 13 |
402129 |
WASHER, RUBBER |
4 |
|
|
|
| 14 |
402130 |
SPACER |
4 |
|
|
|
| 15 |
N32501 |
NUT, SPRING M5 |
1 |
|
|
|
| 16 |
S50402 |
SCREW,TAPPING |
1 |
|
|
|
| 17 |
452020 |
SPLASH APRON |
1 |
|
|
|
| 18 |
453007 |
ORNAMENTAL STRIP, REAR |
1 |
|
|
|
| 19 |
453030 |
REFLECTOR, REAR |
2 |
|
|
|
| 2 |
453002 |
COVER, SMALL LH. |
1 |
|
|
|
| 20 |
GA554NT04 |
NUT, FLANGE M6xP1.0 |
2 |
|
|
|
| 3 |
453003 |
COVER, SIDE RH. |
1 |
|
|
|
| 4 |
453004 |
COVER, SMALL RH. |
1 |
|
|
|
| 5 |
452028D |
BOTTOM PLATE, FUEL TANK |
1 |
|
|
|
| 6 |
S50401 |
SCREW TAPPING M4X12 |
2 |
|
|
|
| 7 |
GA552SC05 |
SCREW TAPPING M4X16 |
18 |
|
|
|
| 8 |
GA552NT01 |
NUT, SPRING M4 |
9 |
|
|
|
| 9 |
401657 |
REED |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
