| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
|
|
|
|
|
|
|

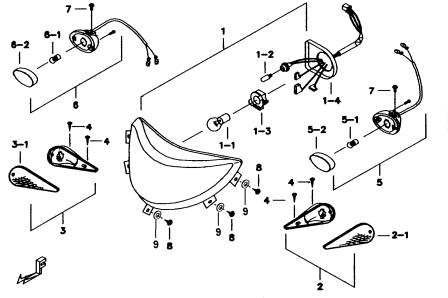

| 1 |
450036 |
HEAD LAMP ASSY. |
1 |
|
|
|
| 1-1 |
GA5520019 |
BULB 12V, 35/35W |
1 |
|
|
|
| 1-2 |
400517 |
BULB 12V, 5W |
1 |
|
|
|
| 1-3 |
450016 |
STAY, MOUNTION |
1 |
|
|
|
| 1-4 |
450046 |
SOCKET COMP. |
1 |
|
|
|
| 2 |
450042 |
FRONT DECORATED COVER ASSY., LH. |
1 |
|
|
|
| 2-1 |
450047 |
DECORATED COVER LH. |
1 |
|
|
|
| 3 |
450043 |
FRONT DECORATED COVER ASSY., RH. |
1 |
|
|
|
| 3-1 |
450048 |
DECORATED COVER RH. |
1 |
|
|
|
| 4 |
GA552SC11 |
SCREW, TAPPING M4X16 |
4 |
|
|
|
| 5 |
450037 |
TURN SIGNAL LAMP COMP., LH. FRONT |
1 |
|
|
|
| 5-1 |
GF5170006 |
BULB, 12V, R10W |
1 |
|
|
|
| 5-2 |
450044 |
LENS, TURN SIGNAL, LH. FRONT |
1 |
|
|
|
| 6 |
450038 |
TURN SIGNAL LAMP COMP., RH. FRONT |
1 |
|
|
|
| 6-1 |
GF5170006 |
BULB, 12V, R10W |
1 |
|
|
|
| 6-2 |
450045 |
LENS, TURN SIGNAL, RH. FRONT |
1 |
|
|
|
| 7 |
GA552SC06 |
BOLT, OVAL HEAD 5X12 |
2 |
|
|
|
| 8 |
S50401 |
SCREW TAPPING M4X12 |
5 |
|
|
|
| 9 |
GA552WS05 |
WASHER |
5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
