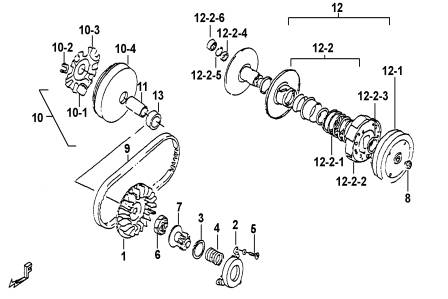

| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
|
|
|
|
|
|
|
| 1 |
GA906AL01 |
FACE, FIXED
DRIVE |
1 |
|
|
|
| 10 |
490048 |
PULLEY COMP.,
DRIVE |
1 |
|
|
|
| 10-1 |
490045 |
ROLLER COMP., MOVABLE
DRIVE FACE |
6 |
|
|
|
| 10-2 |
PG289931 |
GUIDE, MOVABLE DRIVE
FACE PLATE |
3 |
|
|
|
| 10-3 |
490044 |
PLATE, FIXED
DRIVE |
1 |
|
|
|
| 10-4 |
490041 |
FACE COMP., DRIVE
MOVABLE |
1 |
|
|
|
| 11 |
A02806FE01 |
SPACER |
1 |
|
|
|
| 12 |
490291 |
PULLEY COMP.,
DRIVEN |
1 |
|
|
|
| 12-1 |
PG289933 |
HOUSING COMP.,
CLUTCH |
1 |
|
|
|
| 12-2 |
490051 |
PULLEY ASSY.,
DRIVEN |
1 |
|
|
|
| 12-2-1 |
PT506SP02 |
SPRING, MOVABLE DRIVEN
FACE |
1 |
|
|
|
| 12-2-2 |
490498 |
CLUTCH ASSY.,
SHOE |
1 |
|
|
|
| 12-2-3 |
A02806NT01 |
NUT, HEX. M28 |
1 |
|
|
|
| 12-2-4 |
490385 |
BEARING |
1 |
|
|
|
| 12-2-5 |
A02806SR01 |
CIR-CLIP |
1 |
|
|
|
| 12-2-6 |
490384 |
NEEDLE BEARING |
1 |
|
|
|
| 13 |
GA506BS02 |
SPACER 2.5 |
1 |
|
|
|
| 2 |
GA906FE01 |
HOLDER, KICK DRN GEAR
SPRING |
1 |
|
|
|
| 3 |
GA506WS02 |
WASHER |
1 |
|
|
|
| 4 |
GA506SP01 |
SPRING 30.5X24.9 |
1 |
|
|
|
| 5 |
S79605 |
SCREW, SOCKET
HEAD |
3 |
|
|
|
| 6 |
GA906FE04 |
STARTER, KICK
RH. |
1 |
|
|
|
| 7 |
GA5069904 |
STARTER SET, KICK
LH. |
1 |
|
|
|
| 8 |
GA501NT01 |
NUT, FLANGE M10 |
1 |
|
|
|
| 9 |
GE506RB01 |
V-BELT, DRIVE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
