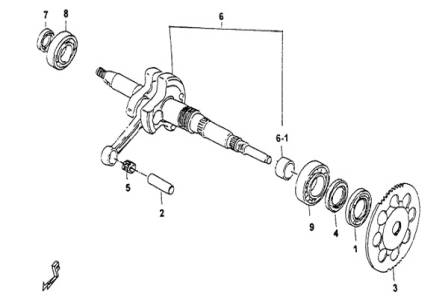

| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE |
|
||||||||
| 1 | GA505OS03 | SEAL, OIL 24X43X6 | 1 | |||||||||||
| 2 | GA505PN01 | PIN, PISTON | 1 | |||||||||||
| 3 | GA505FE05 | GEAR, STARTER | 1 | |||||||||||
| 4 | GA505OS02 | OIL SEAL, LH. 25X37X6 | 1 | |||||||||||
| 5 | GA505BR01 | BEARING, PISTON PIN 10X14X12.5 | 1 | |||||||||||
| 6 | GA5050006 | CRANK SHAFT ASSY. ( INCLUDING SPACER ) | 1 | |||||||||||
| 6-1 | GA505BS01 | SPACER 18X24X14 | 1 | |||||||||||
| 7 | GA505OS01 | OIL SEAL, RH. 17X27X6 | 1 | |||||||||||
| 8 | GA505BR03 | BEARING, RH. 20X47X14 | 1 | |||||||||||
| 9 | GA505BR04 | BEARING, LH. 25X52X13 | 1 | |||||||||||
