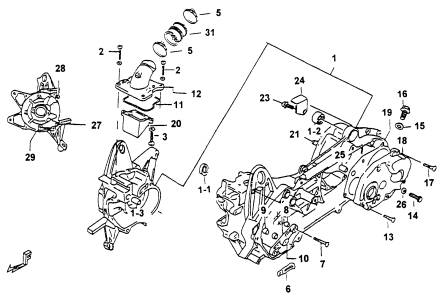

| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
|
|
|
|
|
|
|
| 1 |
GE5020003 |
CRANK CASE COMP. |
1 |
|
|
|
| 10 |
GA6029905 |
CAP SET, STARTER IDLE
GEAR |
1 |
|
|
|
| 11 |
421008 |
GASKET, INTAKE
PIPE |
1 |
|
|
|
| 1-1 |
GL502BR01 |
BEARING 17X35X10 |
2 |
|
|
|
| 12 |
421001 |
PIPE ASSY.,
INTAKE |
1 |
|
|
|
| 1-2 |
GA5049904 |
BUSH COMP. |
1 |
|
|
|
| 13 |
S70602 |
SCREW, HEX. SCCKET
M6X1.0X25L |
5 |
|
|
|
| 1-3 |
GA504PN01 |
PIN, KNOCK
8.5x11x18 |
2 |
|
|
|
| 14 |
GA904SC12 |
BOLT, FLANGE
6X12 |
1 |
|
|
|
| 15 |
GA504WS02 |
WASHER |
1 |
|
|
|
| 16 |
GA504SC12 |
BOLT, FLANGE
8X12 |
1 |
|
|
|
| 17 |
S70603 |
SCREW, SOCKET HEAD
M6x30 |
1 |
|
|
|
| 18 |
GA602AL07 |
COVER, GEAR BOX |
1 |
|
|
|
| 19 |
GA504PK05 |
GASKET, GEAR BOX
COVER |
1 |
|
|
|
| 2 |
S79601 |
SCREW, SOCKET HEAD
M6x20 |
4 |
|
|
|
| 20 |
GA5049907 |
VALVE ASSY.,
REED |
1 |
|
|
|
| 21 |
GA504PN03 |
PIN, BRAKE SHOE |
1 |
|
|
|
| 23 |
GA557SC15 |
BOLT, HEX. HEAD
M6X10 |
1 |
|
|
|
| 24 |
GA557PS01 |
BRKT, REAR BRAKE |
1 |
|
|
|
| 25 |
GA504PN01 |
PIN, KNOCK
8.5x11x18 |
2 |
|
|
|
| 26 |
W99601 |
WASHER 6X12X2 |
1 |
|
|
|
| 27 |
S70606 |
SCREW, SOCKET HEAD
M6x75 |
1 |
|
|
|
| 28 |
S70605 |
SCREW, SOCKET HEAD
M6x85 |
1 |
|
|
|
| 29 |
S70601 |
SCREW, SOCKET HEAD
M6X45 |
3 |
|
|
|
| 3 |
S79401 |
SCREW, SOCKET HEAD
M4x20 |
2 |
|
|
|
| 31 |
421002 |
RUBBER TUBE |
1 |
|
|
|
| 5 |
422038 |
CLIP |
2 |
|
|
|
| 6 |
GA501SR01 |
CLAMP |
1 |
|
|
|
| 7 |
S70602 |
SCREW, HEX. SCCKET
M6X1.0X25L |
2 |
|
|
|
| 8 |
GA504PN02 |
PIN, DOWEL
6.5x9x10 |
2 |
|
|
|
| 9 |
GA504BS01 |
BUSH |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
