| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
|
|
|
|
|
|
|

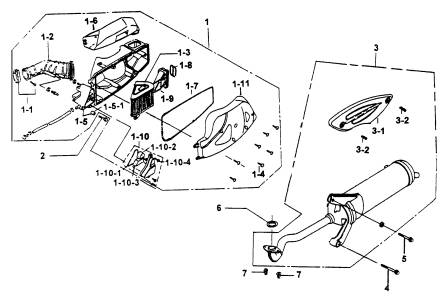

| 1 |
420066 |
AIR CLEANER ASSY. |
1 |
|
|
|
| 1-1 |
400191 |
CLAMP |
1 |
|
|
|
| 1-10 |
400303 |
COVER ASSY. OIL CATCH |
1 |
|
|
|
| 1-10-1 |
400305 |
SEAL OIL CATCH |
1 |
|
|
|
| 1-10-2 |
400306 |
FILTER BREATHER |
1 |
|
|
|
| 1-10-3 |
400307 |
FILTER OIL CATCH |
1 |
|
|
|
| 1-10-4 |
S50402 |
SCREW,TAPPING |
2 |
|
|
|
| 1-11 |
420069 |
COVER AIR CLEANER |
1 |
|
|
|
| 1-2 |
420049 |
INLET TUBE |
1 |
|
|
|
| 1-3 |
400302 |
ELEMENT COMP. |
1 |
|
|
|
| 1-4 |
S45501 |
STUD 5X20 |
7 |
|
|
|
| 1-5 |
400196 |
CASE AIR CLENER |
1 |
|
|
|
| 1-5-1 |
400197 |
BUSH |
2 |
|
|
|
| 1-6 |
420067 |
DUCT AIR CLEANER CASE |
1 |
|
|
|
| 1-7 |
400199 |
SEAL AIR CLEANER COVER |
1 |
|
|
|
| 1-8 |
400200 |
SPRING IN DUCT |
1 |
|
|
|
| 1-9 |
400301 |
DUCT AIR CLEANER IN |
1 |
|
|
|
| 2 |
S24614 |
BOLT, FLANGE |
2 |
|
|
|
| 3 |
426033 |
BODY COMP., MUFFLER |
1 |
|
|
|
| 3-1 |
426058 |
PROTECTOR COMP. MUFFLER |
1 |
|
|
|
| 3-2 |
400319 |
SCREW SET |
3 |
|
|
|
| 4 |
S20809 |
BOLT, FLANGE 8X42 |
1 |
|
|
|
| 5 |
S20810 |
BOLT, FLANGE 8X38 |
1 |
|
|
|
| 6 |
400317 |
WASHER, MUFFLER |
1 |
|
|
|
| 7 |
N12802 |
SCREW, OVAL HEAD 6mm |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
