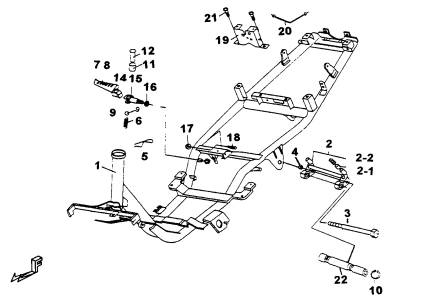

| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
|
|
|
|
|
|
|
| 1 |
BH1190001 |
FRAME |
1 |
|
|
|
| 10 |
R00701 |
RETAINER RING, C TYPE
∮16 |
2 |
|
|
|
| 11 |
GF519FE01 |
COLLAR, PIN
6X8X20 |
2 |
|
|
|
| 12 |
GA551PN02 |
PIN 6X34 |
2 |
|
|
|
| 14 |
BH1199901 |
BRKT, FOOTREST,
PILLION, RH. |
1 |
|
|
|
| 15 |
BH1199902 |
BRKT, FOOTREST,
PILLION, LH. |
1 |
|
|
|
| 16 |
W99005 |
WASHER |
2 |
|
|
|
| 17 |
GA556NT01 |
NUT, SLOTTED |
4 |
|
|
|
| 18 |
S06101 |
BOLT, HANGER
M10 |
2 |
|
|
|
| 19 |
BH1199904 |
LOCK SET, SEAT |
1 |
|
|
|
| 2 |
BH1199903 |
ROCKER ARM ASSY.,
HANGER |
1 |
|
|
|
| 20 |
BH1199905 |
CABLE, LOCK SET,
SEAT |
1 |
|
|
|
| 21 |
GA556SC01 |
BOLT, FLANGE
M6X1.0X12L |
2 |
|
|
|
| 2-1 |
GI519RB01 |
DAMPER, RUBBER |
2 |
|
|
|
| 22 |
BH102FE01 |
SLEEVE, HANGER |
1 |
|
|
|
| 2-2 |
GI519SP01 |
SPRING,
COMPRESSION |
2 |
|
|
|
| 3 |
S21203 |
BOLT, HEX. HEAD |
1 |
|
|
|
| 4 |
N25201 |
NUT, SELFLOCK
M12X1.25 |
1 |
|
|
|
| 5 |
GA551PN01 |
COTTER PIN
1.5X30 |
2 |
|
|
|
| 6 |
GF519SP01 |
SPRING, COMPRESSION
6X12.5 |
2 |
|
|
|
| 7 |
GF519AL06 |
FOOTREST ASSY.,
PILLION, RH. |
1 |
|
|
|
| 8 |
GF519AL05 |
FOOTREST ASSY.,
PILLON, LH. |
1 |
|
|
|
| 9 |
GF519FE04 |
BALL ψ6.35 |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
