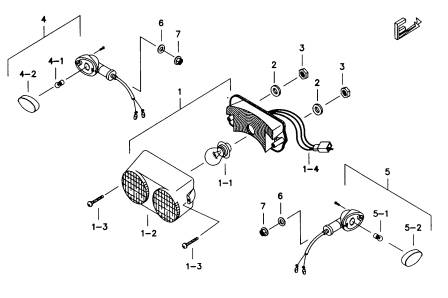

| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
|
|
|
|
|
|
|
| 1 |
451033 |
REAR LAMP ASSY. |
1 |
|
|
|
| 1-1 |
GF5180002 |
BULB 12V,
P21/5W |
1 |
|
|
|
| 1-2 |
451034 |
LENS, REAR
COMBINATION |
1 |
|
|
|
| 1-3 |
S60401 |
SCREW, TAPPING
M4x18 |
2 |
|
|
|
| 1-4 |
BH1189901 |
WIRING HARNESS, REAR
LAMP |
1 |
|
|
|
| 2 |
W99603 |
RUBBER, OIL TANK
INLRT M6 |
2 |
|
|
|
| 3 |
GA554NT04 |
NUT, FLANGE
M6xP1.0 |
2 |
|
|
|
| 4 |
451024 |
TURN SIGNAL LAMP
COMP., LH. |
1 |
|
|
|
| 4-1 |
GF5170006 |
BULB, 12V, R10W |
1 |
|
|
|
| 4-2 |
451030 |
LENS, TURN SIGNAL
LAMP.,LH. REAR |
1 |
|
|
|
| 5 |
451025 |
TURN, SIGNAL LAMP
COMP., RH. |
1 |
|
|
|
| 5-1 |
GF5170006 |
BULB, 12V, R10W |
1 |
|
|
|
| 5-2 |
451031 |
LENS, TURN SIGNAL
LAMP., RH. REAR |
1 |
|
|
|
| 6 |
W99005 |
WASHER |
2 |
|
|
|
| 7 |
GA551NT02 |
NUT, FLANGE SELRLOCK
M10x10 |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
