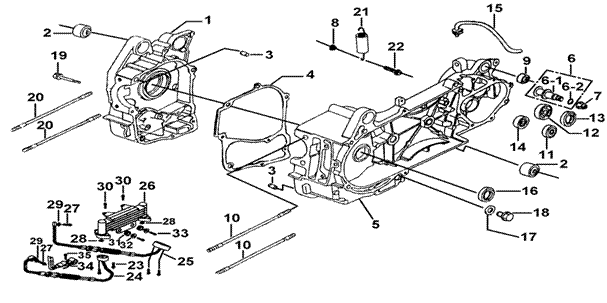

2	CRANK   CASE			BR9-D
ITEM NO	PART NO	DESCRIPTION	Q'TY	AMEND	NOTE
01	422033	CRANK CASE COMP., RH.	1
02	400026	BUSH COMP.	2
03	P40802	PIN, DOWEL  8X14	2
04	400031	GASKET, CRANKCASE	1
05	422034	CRANKCASE COMP., LH.	1
06	422027	PIN, BRAKE  SHOE  ASSY.	1
06-1	422008	PIN, BRAKE  SHOE	1
06-2	400036	O  RING	1
07	N25801	NUT, SELFLOCK M8	1
08	GA504NT01	NUT, FLANGE M6	2
09	400038	BUSH COMP.	1
10	S95802	STUB  M8x195.5	2
11	400039	BEARING  CSB301JR2	1
12	400040	BEARING  6004uu	1
13	400041	OIL  SEAL  27X42X7	1
14	400042	BEARING  6002	1
15	400043	TUBE  SET, BREATHER	1
16	400155	OIL  SEAL  19.8X30X5	1
17	W99201	WASHER  12mm	1
18	S20201	BOLT,OUTLET 12mm	1
19	S24602	BOLT, FLANGE M6X50	1
20	S95801	STUB M8x187.5	2
21	422028	SPRING, REAR BRAKE	1
22	S24614	BOLT, FLANGE	1
23	S24605	BOLT,FLANGE M6X25	4
24	427015	HOSE ASSY., INTLET. OIL COOLER	1
25	427016	HOSE ASSY., OUTLET. OIL COOLER	1
26	427010	OIL COOLER	1
27	427011	BOLT, HOSE B	2
28	427012	O RING	2
29	W99210	WASHER	4
30	GA554NT04	NUT, FLANGE  M6xP1.0	2
31	GA554RB05	CUSHION, REAR	2
32	427013	SPACER	2
33	GA551SC09	BOLT, FLANGE M6X20	2
34	427014	CLAMP, HOSE	1
35	S24603	BOLT, FLANGE M6x16	1
