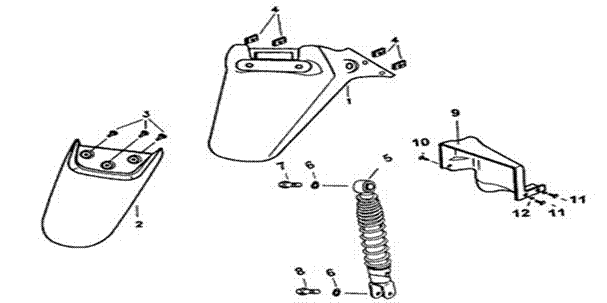

| 33 | REAR FENDER | BR1-D | |||||
|
|
|||||||
| ITEM NO | PART NO | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 458013 | FENDER, REAR UPPER | 1 | ||||
| 02 | 458002 | FENDER, REAR, LOWER | 1 | ||||
| 03 | S50401 | SCREW TAPPING M4X12 | 3 | ||||
| 04 | GA552NT01 | NUT, SPRING M4 | 4 | ||||
| 05 | 413304 | ABSORBER ASSY., SHOCK, REAR | 1 | ||||
| 06 | GA556WS06 | WASHER, SPRING 10.2X3.7X2.5t | 2 | ||||
| 07 | S20035 | BOLT, FLANGE M10X1.25X40L | 1 | ||||
| 08 | GA556SC04 | BOLT, HEX. HEAD 10X34 | 1 | ||||
| 09 | 458004 | SPLASH BOARD | 1 | ||||
| 10 | S50506 | SCREW, TAPPING | 1 | ||||
| 11 | S70609 | SCREW, SOCKET HEAD M6x16 | 2 | ||||
| 12 | GA556WS02 | WASHER | 2 | ||||
