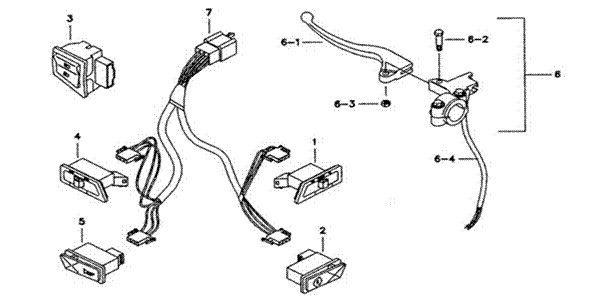

| 32 | HANDLE BAR SWITCH | BR1-D | |||||
|
|
|||||||
| ITEM NO | PART NO | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 440930 | KILL SWITCH UNIT | 1 | ||||
| 02 | 441040 | STARTER SWITCH UNIT | 1 | ||||
| 03 | 400592 | BEAM SWITCH | 1 | ||||
| 04 | 400593 | WINKER SWITCH UNIT | 1 | ||||
| 05 | 441041 | HORN SWITCH UNIT | 1 | ||||
| 06 | 400597 | LEVER ASSY., HANDLE BAR, LH. | 1 | ||||
| 06-1 | 413212 | LEVER, HANDLE BAR, LH. | 1 | ||||
| 06-1A | 413212C | LEVER, HANDLE BAR, LH. (CHROMIUM PLATED) | 1 | OPTION | |||
| 06-2 | S04501 | BOLT, HEX HEAD | 1 | ||||
| 06-3 | N01501 | NUT, SELFLOCK | 1 | ||||
| 06-4 | 413211 | SWITCH ASSY., BRAKE | 1 | ||||
| 07 | 440933 | HANDLE SWITCH, UNIT, WIRING HARNESS | 1 | ||||
