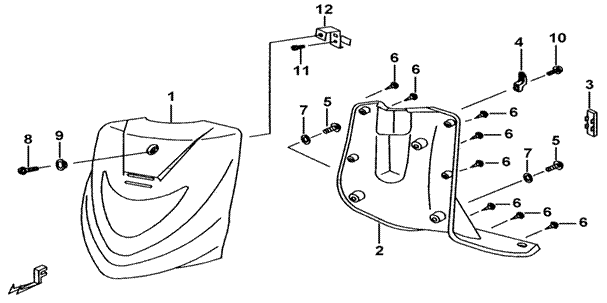

| 25 | FRONT LEG SHIELD | BR1-D | |||||
|
|
|||||||
| ITEM NO | PART NO | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 454022 | LEG SHIELD FRONT | 1 | ||||
| 02 | 454010 | COVER SET, LEG SHIELD | 1 | ←614424 | |||
| 02A | 454010B | COVER SET, LEG SHIELD | 1 | 614425→ | |||
| 03 | BH125PL04 | COVER SET, LEG SHIELD, SMALL | 1 | ||||
| 04 | 454005 | HOOK LUGGAGE | 1 | ||||
| 05 | GA904SC26 | SCREW, SOCKET HEAD M6X16 | 2 | ||||
| 06 | S57501 | SCREW,OVAL HEAD, FLANGE M5X14 | 8 | ||||
| 07 | W99602 | WASHER 6.5X12X1.0 | 2 | ||||
| 08 | S72602 | BOLT, HEX. HEAD | 1 | ||||
| 09 | 454036 | WASHER | 1 | ||||
| 10 | GA558SC05 | BOLT, HEX. HEAD M6x28 | 1 | ||||
| 11 | S79602 | SCREW, SOCKET HEAD M6x16 | 1 | ||||
| 12 | 401685 | BRACKET | 1 | ||||
